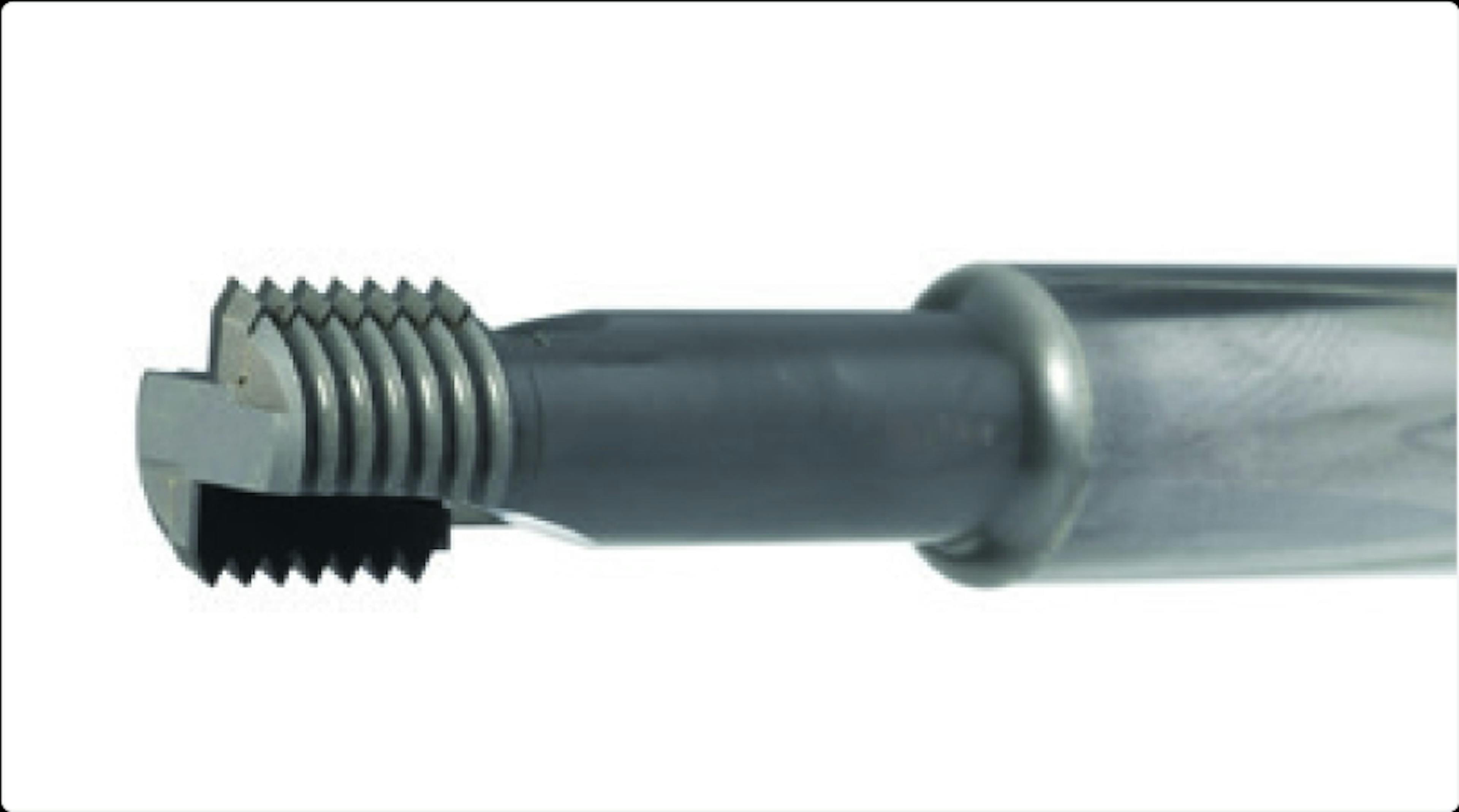

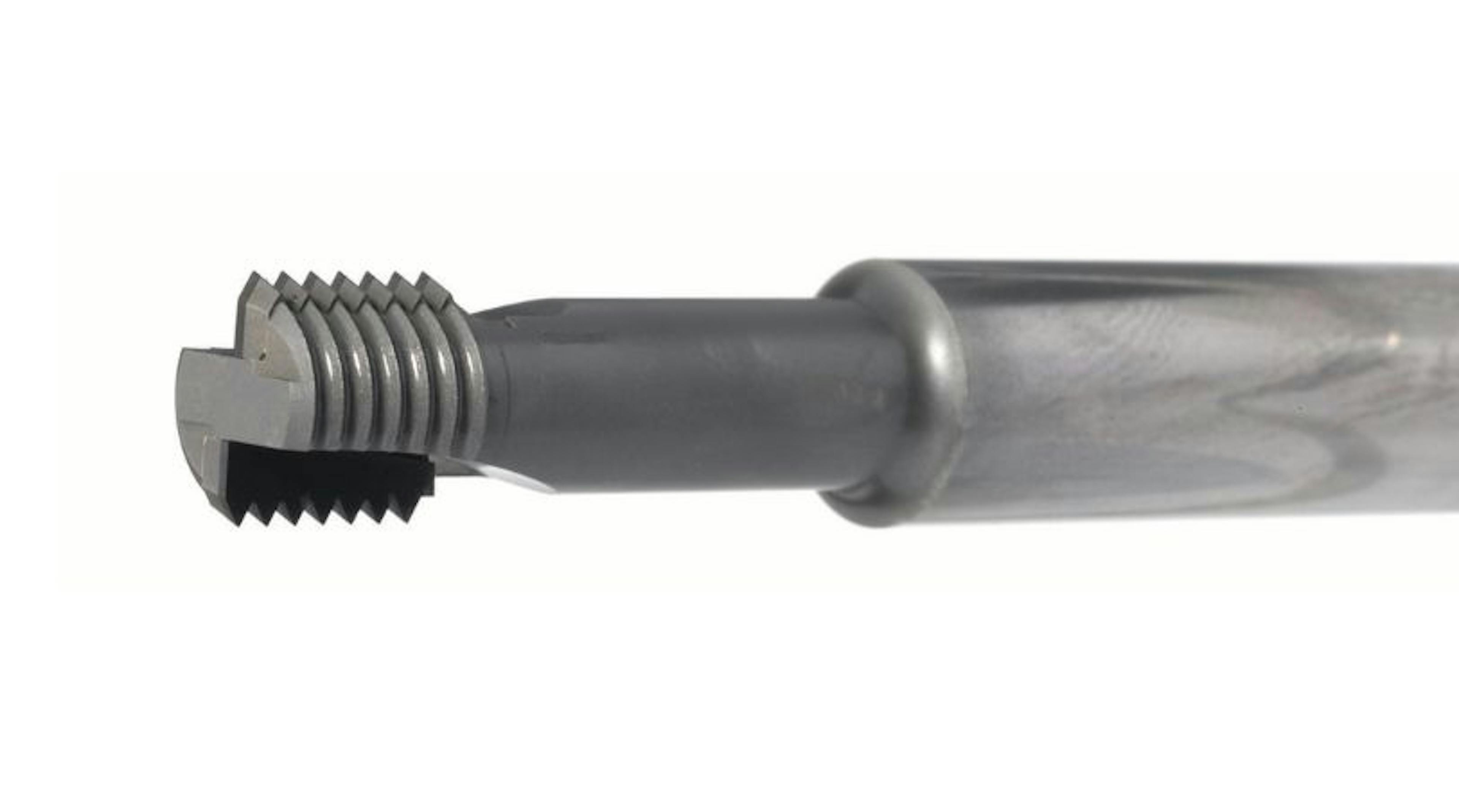

For machining an accurate thread form, Exactaform’s range of PCD thread mills provide the ultimate solution. The PCD cutting edges outlast carbide and coated carbide by up to 10 times, preventing the teeth from breaking down and wearing. PCD thread mills have proven themselves effective in threading parts made from CFRPs, MMCs and other abrasive materials, and are used in the aerospace, auto sport and medical industries.
For custom threads, from sizes M3 upwards, please contact a member of our team who will be happy to provide a custom quote.
The following PCD thread mills are available off-the-shelf ready for immediate delivery
D1 | D2 H6 | LOC | Reach | O/All |
|---|---|---|---|---|
M4 | 6 | 5 | 11 | 100 |
M5 | 6 | 5.5 | 15 | 100 |
M6 | 6 | 6 | 18 | 100 |
M8 | 8 | 8 | 20 | 100 |
M10 | 10 | 8.5 | 25 | 100 |
M12 | 12 | 8.5 | 30 | 100 |
