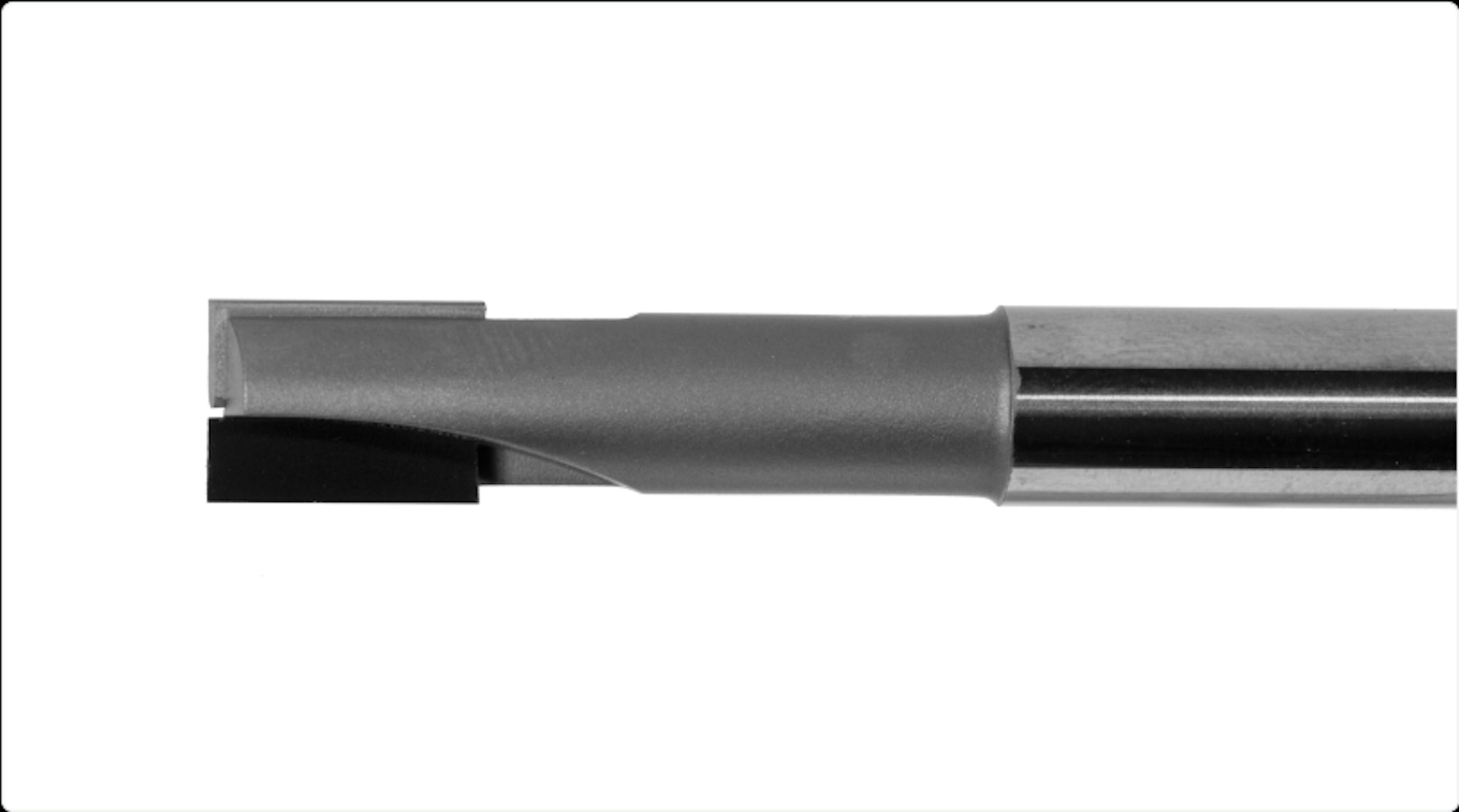

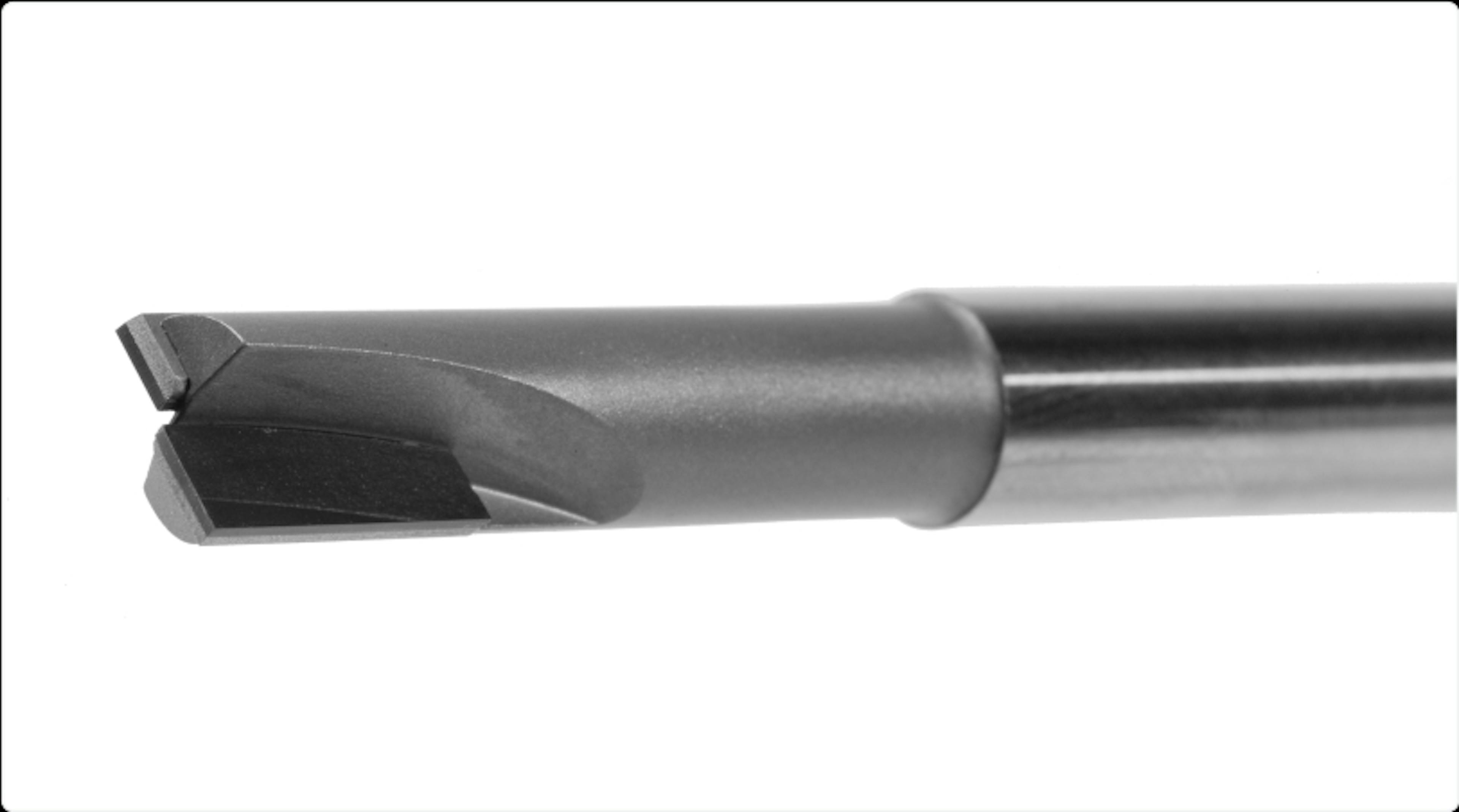

A range of 2 flute Square End Mills (SEMs) for high abrasive wear resistance. All SEMs are manufactured with a sharp corner, but can be modified free of charge with a customer specified corner radius.
Machining Applications
Designed for trimming, slotting or surface machining CFRPs, MMCs and other non-ferrous abrasive materials. Presenting a cost effective solution for low volume machining environments where superior surface finish and accuracy are required
DIA | LOC | Shank | Reach | O/All |
|---|---|---|---|---|
⌀2 | 6 | 6 6h | 8 | 60 |
⌀3 | 6 | 6 6h | 20 | 60 |
⌀4 | 6 | 6 6h | 20 | 60 |
⌀5 | 10 | 6 6h | 30 | 100 |
⌀6 | 10 | 6 6h | 30 | 100 |
⌀8 | 10 | 8 6h | 30 | 100 |
⌀10 | 12 | 10 6h | 30 | 100 |
⌀12 | 14 | 12 6h | 30 | 100 |
⌀16 | 14 | 16 6h | 50 | 165 |
⌀20 | 14 | 20 6h | 50 | 165 |
