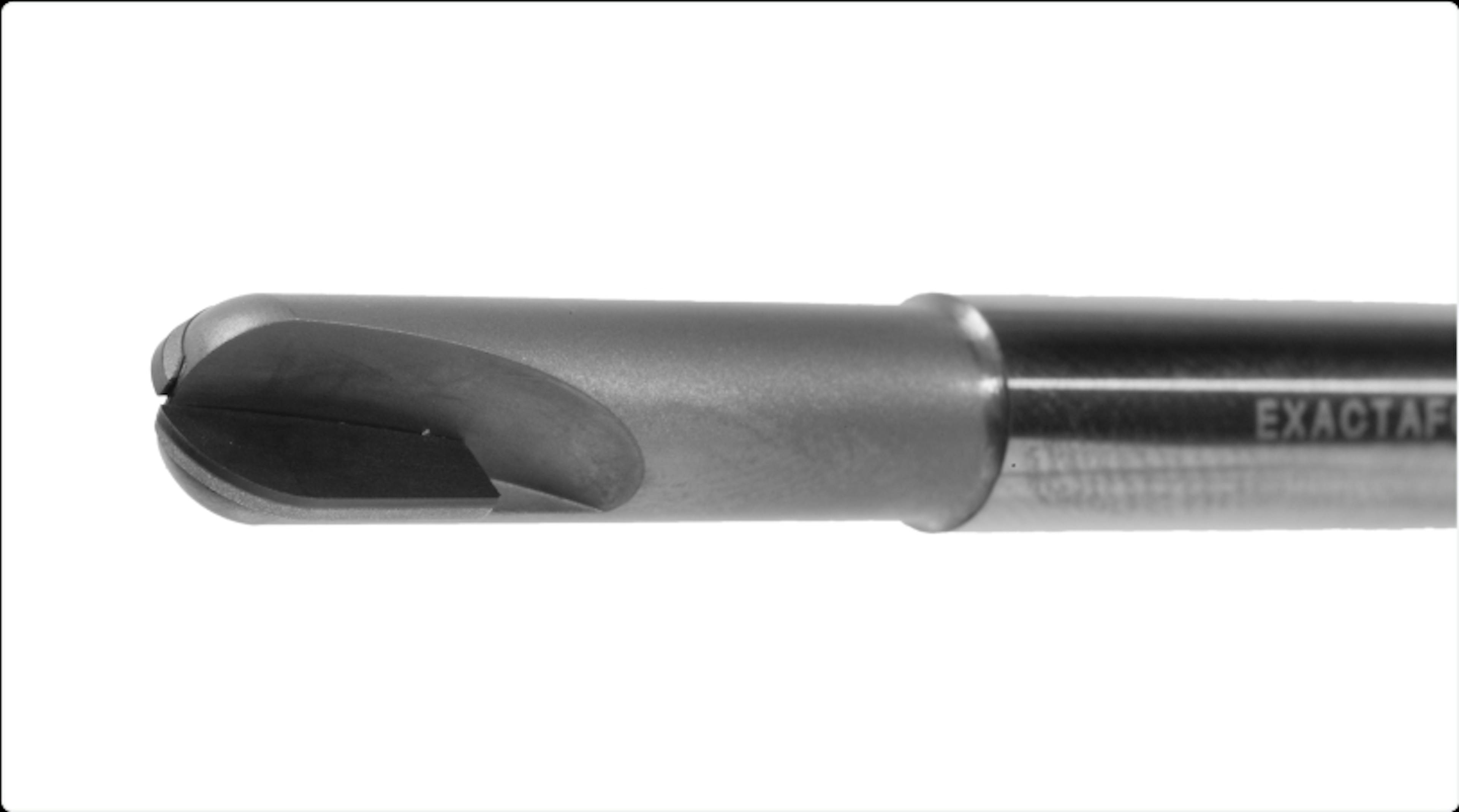

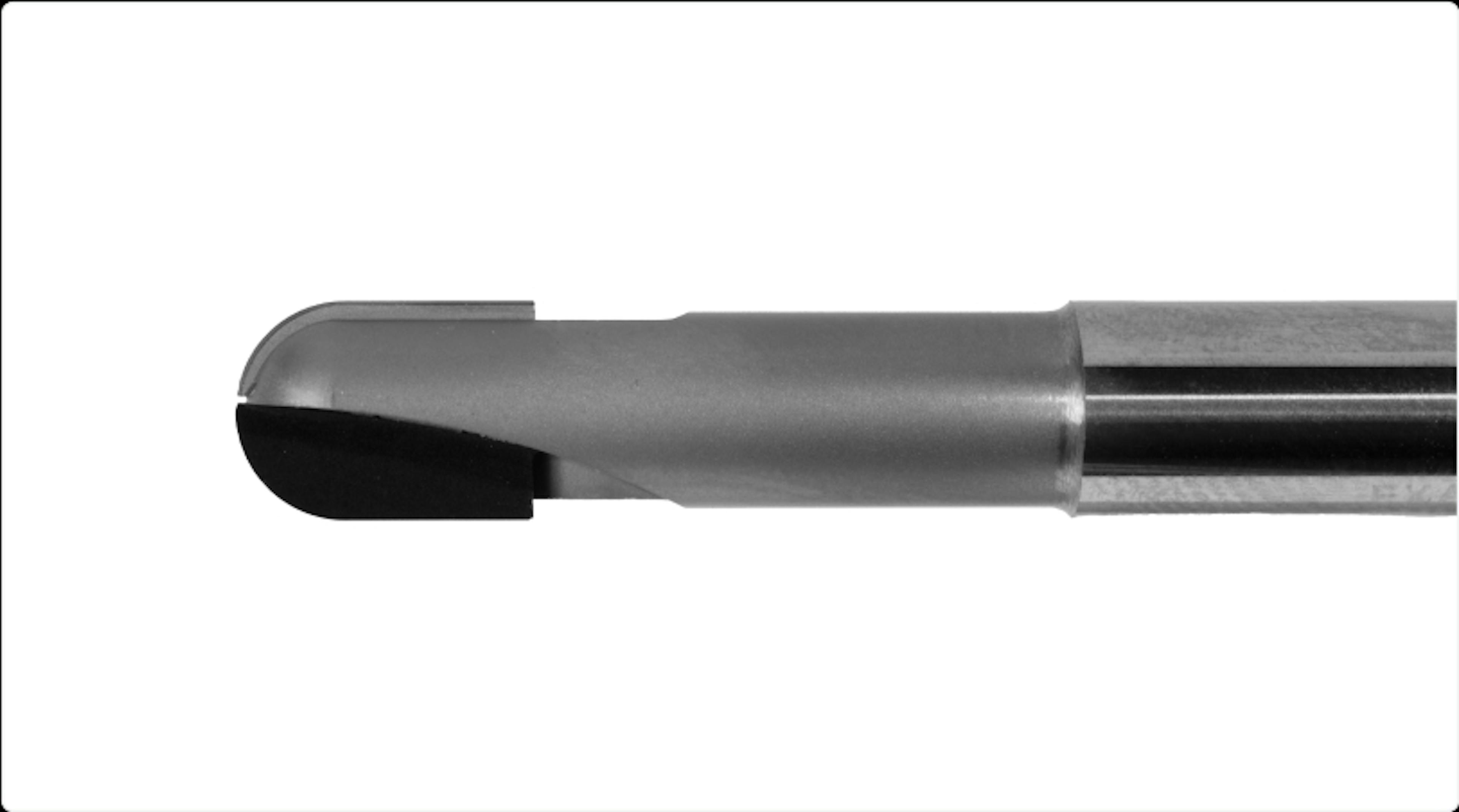

Our PCD 2 Flute Ball Nose Milling Cutters are perfect for profile milling applications. The PCD cutting edges are manufactured with precision to produce accurate radius forms. This, along with exceptional tool life from PCD cutting edges, gives reliable results during component manufacture.
DIA | LOC | Reach | O/All |
|---|---|---|---|
⌀2 | 6 | 10 | 60 |
⌀3 | 6 | 10 | 60 |
⌀4 | 6 | 20 | 60 |
⌀5 | 10 | 30 | 100 |
⌀6 | 10 | 30 | 100 |
⌀8 | 10 | 30 | 100 |
⌀10 | 12 | 30 | 100 |
⌀12 | 14 | 30 | 100 |
⌀16 | 14 | 30 | 100 |
Ø1/8" | 0.250" | 0.750" | 3.00" |
Ø3/16" | 0.315" | 1.000" | 3.00" |
Ø1/4" | 0.375" | 1.250" | 4.00" |
Ø5/16" | 0.500" | 1.250" | 4.00" |
Ø3/8" | 0.500" | 1.250" | 4.00" |
Ø1/2" | 0.550" | 1.250" | 4.00" |
