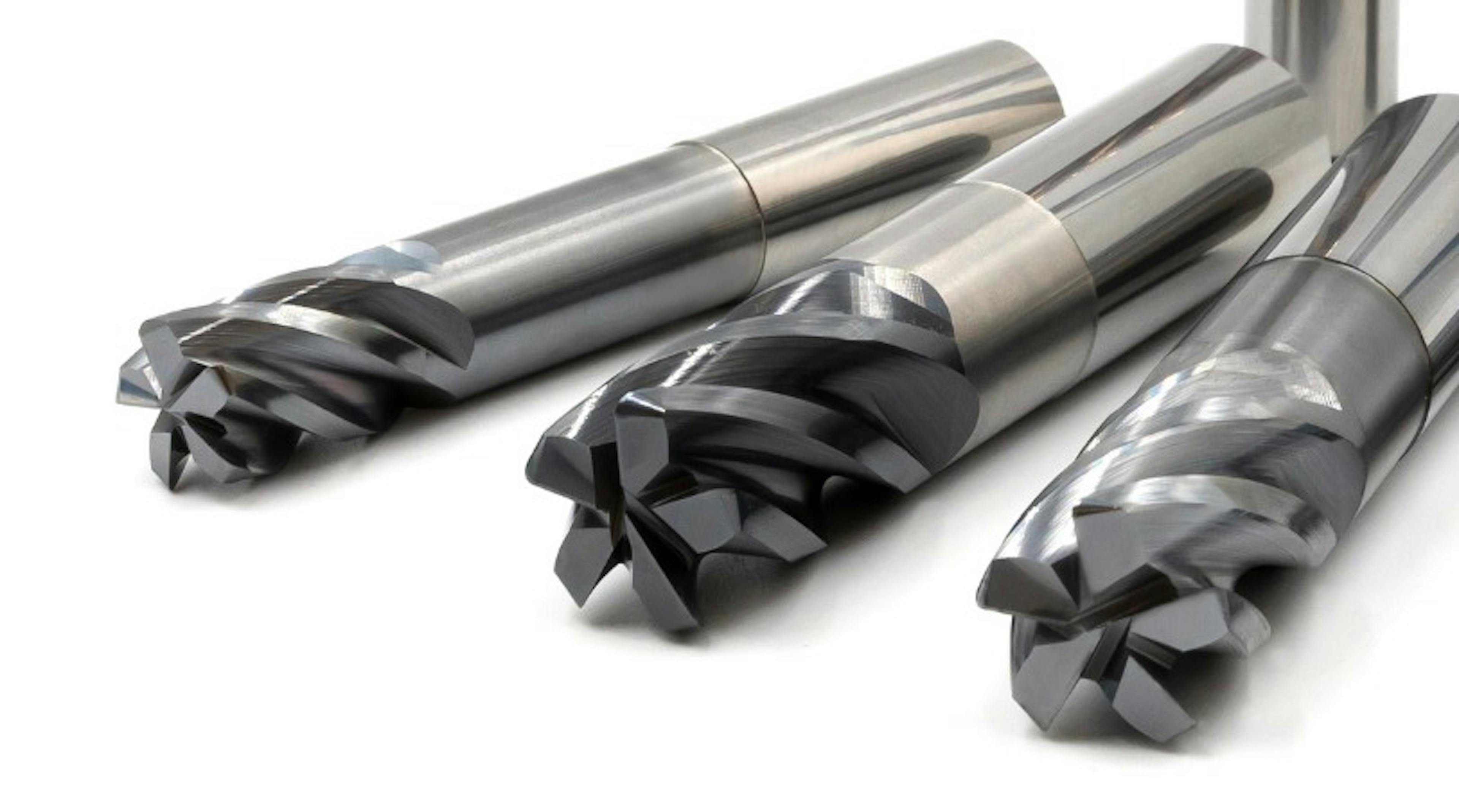

Titanium & Nickel Alloy - Roughing - Group shot

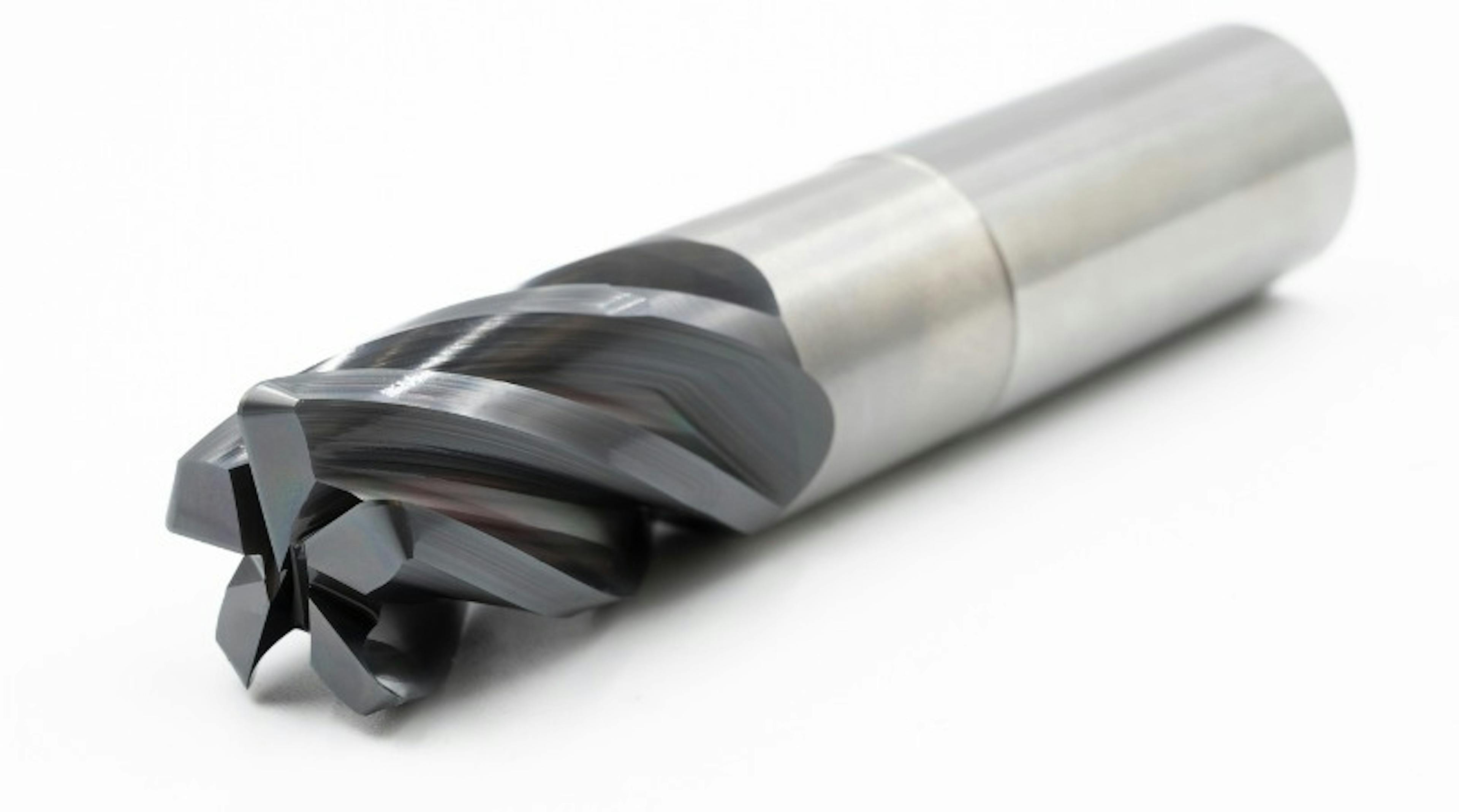

Titanium&Nickel Alloy Roughing End Mill_Angled full2_521703-1000.09

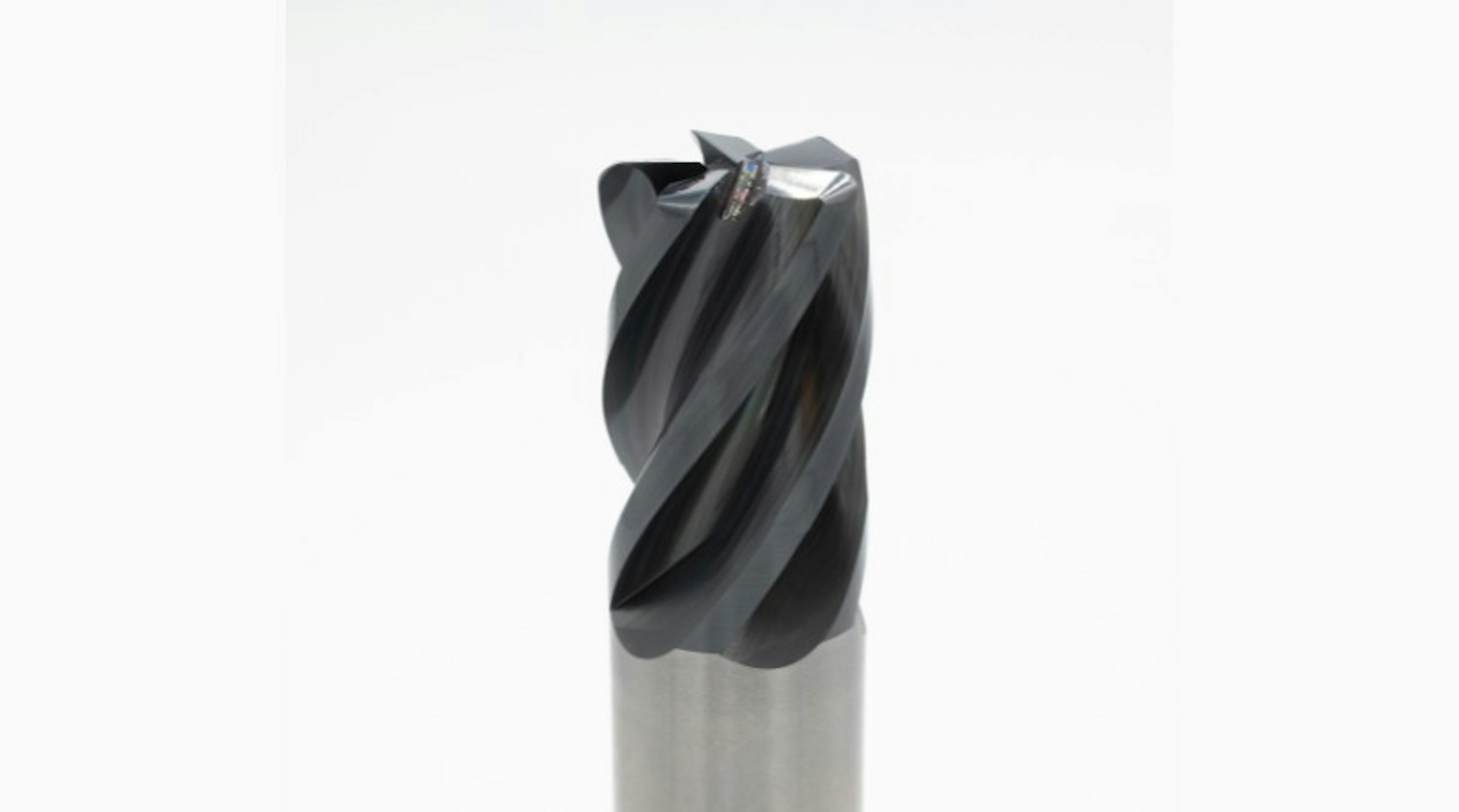

Titanium&Nickel Alloy Roughing End Mill_Detail1_521703-1000.09

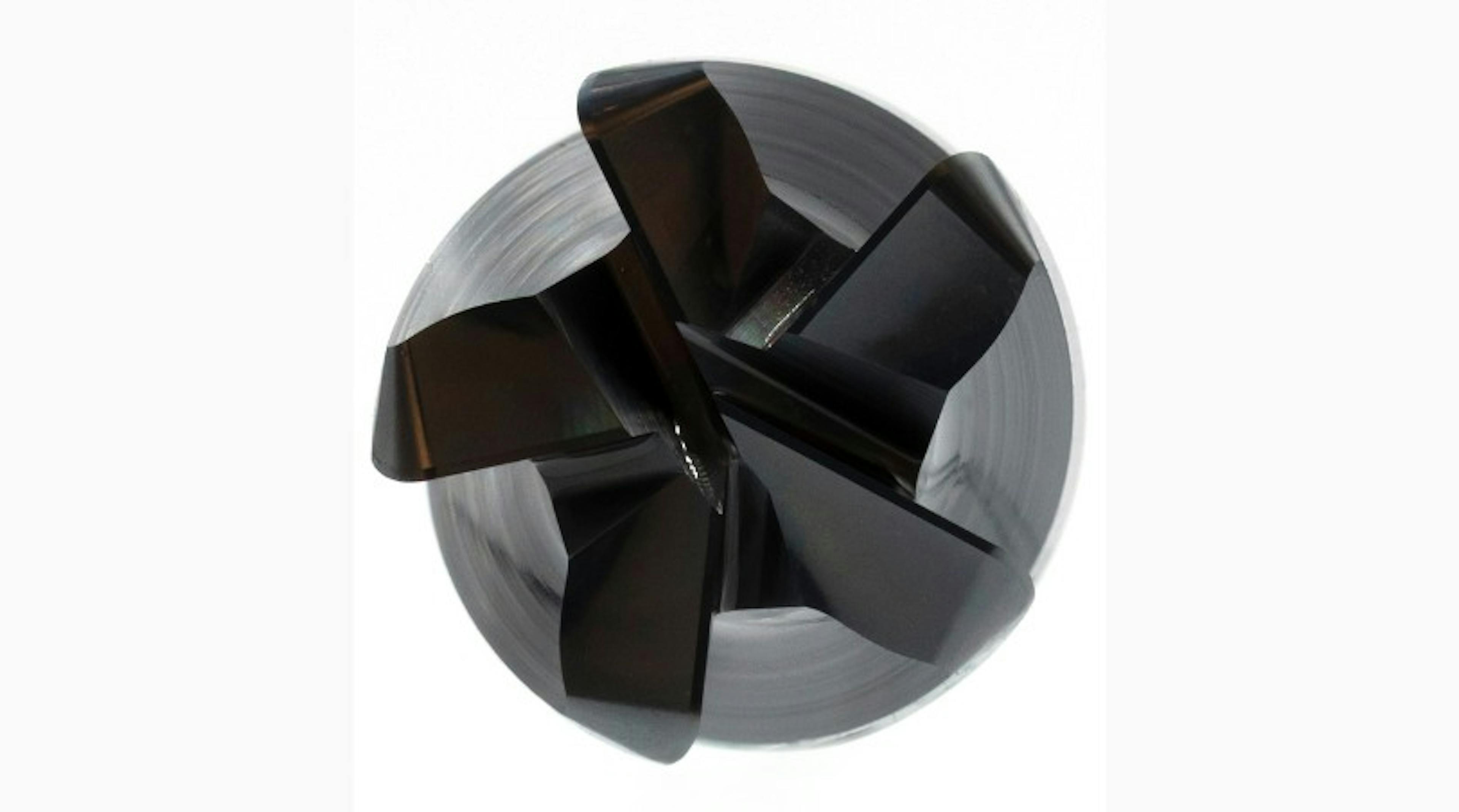

Titanium&Nickel Alloy_Profile2_521703-1000.09

ExactaMill XE22 Series - Roughing End Mills

Our roughing end mills will cope with the most demanding processes encountered in the modern machining environment.

  • Corner radii conforming to aerospace requirement, manufactured to the tightest aerospace standards.
  • Process security, part dimensional accuracy.
  • Tapered core profile gives cutter strength in demanding processes offering cutter stability and part dimensional accuracy on thin wall machining.
  • Process security and reliability, reduced tooling costs.

Need more information?

Contact us

Specifications

Part Number

Cutter Diameter

Length Below Shank

Cutting Edge Length

Overall Length

Shank Diameter h6

No of Flutes

Corner Radius

523111-0375.00

 3/8



0.500

2.500

0.375

4

SQ

523111-0375.02

 3/8



0.500

2.500

0.375

4

0.015

523111-0375.03

 3/8



0.500

2.500

0.375

4

0.030

523111-0375.06

 3/8



0.500

2.500

0.375

4

0.060

522111-0375.00

 3/8



1.000

3.000

0.375

4

SQ

522111-0375.02

 3/8



1.000

3.000

0.375

4

0.015

522111-0375.03

 3/8



1.000

3.000

0.375

4

0.030

522111-0375.06

 3/8



1.000

3.000

0.375

4

0.060

522111-0375.19BN

 3/8



1.000

3.000

0.375

4

BN

523211-0500.00

 1/2



0.625

3.000

0.500

5

SQ

523211-0500.03

 1/2



0.625

3.000

0.500

5

0.030

523211-0500.06

 1/2



0.625

3.000

0.500

5

0.060

523211-0500.09

 1/2



0.625

3.000

0.500

5

0.090

523211-0500.12

 1/2



0.625

3.000

0.500

5

0.120

522211-0500.00

 1/2



1.250

3.000

0.500

5

SQ

522211-0500.03

 1/2



1.250

3.000

0.500

5

0.030

522211-0500.06

 1/2



1.250

3.000

0.500

5

0.060

522211-0500.09

 1/2



1.250

3.000

0.500

5

0.090

522211-0500.12

 1/2



1.250

3.000

0.500

5

0.120

523203-0500.03

 1/2

2.250

0.625

4.000

0.500

5

0.030

523203-0500.06

 1/2

2.250

0.625

4.000

0.500

5

0.060

523203-0500.09

 1/2

2.250

0.625

4.000

0.500

5

0.090

523203-0500.12

 1/2

2.250

0.625

4.000

0.500

5

0.120

521611-0500.25BN

 1/2



1.000

3.000

0.500

4

BN

521711-0625.03

5/8



1.500

4.000

0.625

5

0.030

521711-0625.06

5/8



1.500

4.000

0.625

5

0.060

521711-0625.09

5/8



1.500

4.000

0.625

5

0.090

521711-0625.12

5/8



1.500

4.000

0.625

5

0.120

522211-0625.03

5/8



2.000

4.000

0.625

5

0.030

522211-0625.06

5/8



2.000

4.000

0.625

5

0.060

522211-0625.09

5/8



2.000

4.000

0.625

5

0.090

522211-0625.12

5/8



2.000

4.000

0.625

5

0.120

523203-0625.03

5/8

1.625

0.750

4.000

0.625

5

0.030

523203-0625.06

5/8

1.625

0.750

4.000

0.625

5

0.060

523203-0625.09

5/8

1.625

0.750

4.000

0.625

5

0.090

523203-0625.12

5/8

1.625

0.750

4.000

0.625

5

0.120

521703-0625.03

5/8

2.375

1.000

5.000

0.625

5

0.030

521703-0625.06

5/8

2.375

1.000

5.000

0.625

5

0.060

521703-0625.09

5/8

2.375

1.000

5.000

0.625

5

0.090

521703-0625.12

5/8

2.375

1.000

5.000

0.625

5

0.120

522111-0625.32BN

5/8



1.625

4.000

0.625

4

BN

521711-0750.03

3/4



1.625

4.000

0.750

5

0.030

521711-0750.06

3/4



1.625

4.000

0.750

5

0.060

521711-0750.09

3/4



1.625

4.000

0.750

5

0.090

521711-0750.12

3/4



1.625

4.000

0.750

5

0.120

522211-0750.03

3/4



2.500

5.000

0.750

5

0.030

522211-0750.06

3/4



2.500

5.000

0.750

5

0.060

522211-0750.09

3/4



2.500

5.000

0.750

5

0.090

522211-0750.12

3/4



2.500

5.000

0.750

5

0.120

523211-0750.03

3/4

2.000

1.000

4.000

0.750

5

0.030

523211-0750.06

3/4

2.000

1.000

4.000

0.750

5

0.060

523211-0750.09

3/4

2.000

1.000

4.000

0.750

5

0.090

523211-0750.12

3/4

2.000

1.000

4.000

0.750

5

0.120

521703-0750.03

3/4

3.375

1.125

5.000

0.750

5

0.030

521703-0750.06

3/4

3.375

1.125

5.000

0.750

5

0.060

521703-0750.09

3/4

3.375

1.125

5.000

0.750

5

0.090

521703-0750.12

3/4

3.375

1.125

5.000

0.750

5

0.120

523211-1000.03

1



1.250

4.000

1.000

5

0.030

523211-1000.06

1



1.250

4.000

1.000

5

0.060

523211-1000.09

1



1.250

4.000

1.000

5

0.090

523211-1000.12

1



1.250

4.000

1.000

5

0.120

523217-1000.03

1



2.000

5.000

1.000

5

0.030

523217-1000.06

1



2.000

5.000

1.000

5

0.060

523217-1000.09

1



2.000

5.000

1.000

5

0.090

523217-1000.12

1



2.000

5.000

1.000

5

0.120

523203-1000.03

1

2.250

1.250

5.000

1.000

5

0.030

523203-1000.06

1

2.250

1.250

5.000

1.000

5

0.060

523203-1000.09

1

2.250

1.250

5.000

1.000

5

0.090

523203-1000.12

1

2.250

1.250

5.000

1.000

5

0.120

521703-1000.03

1

3.375

1.500

6.000

1.000

5

0.030

521703-1000.06

1

3.375

1.500

6.000

1.000

5

0.060

521703-1000.09

1

3.375

1.500

6.000

1.000

5

0.090

521703-1000.12

1

3.375

1.500

6.000

1.000

5

0.120
