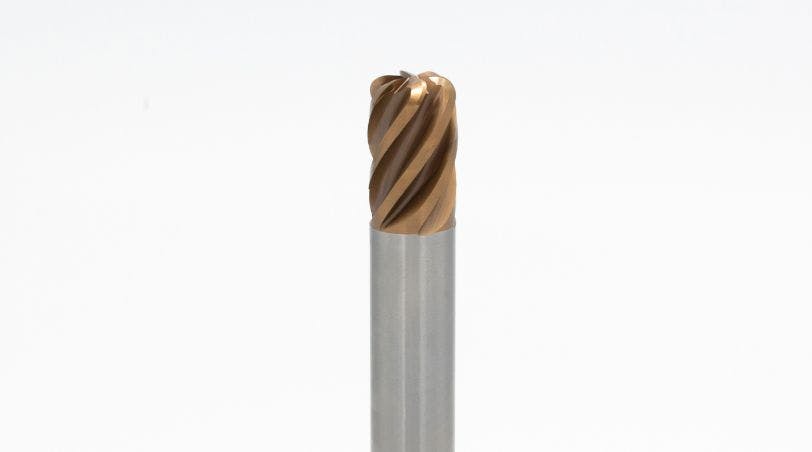

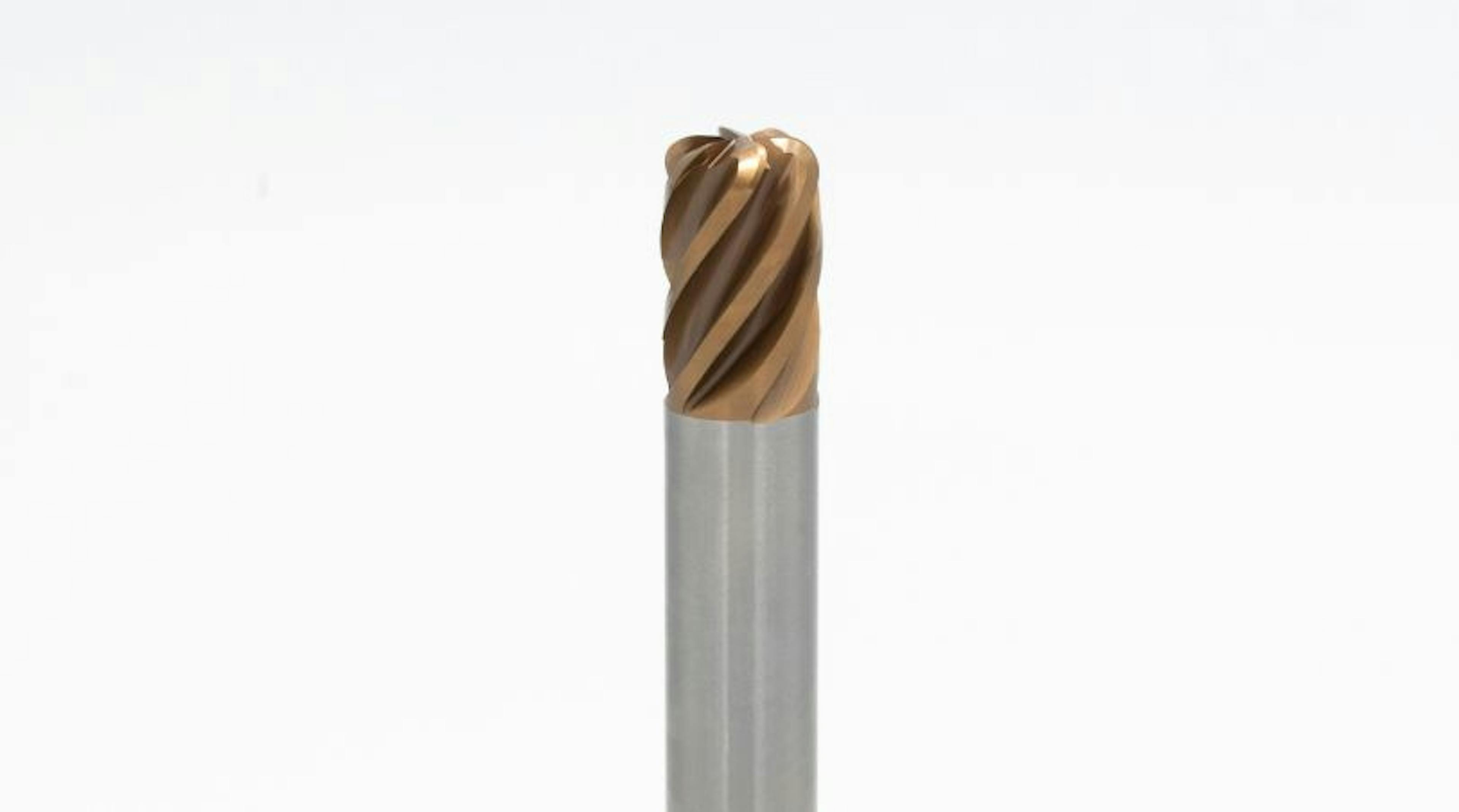

Titanium&Nickel Alloy_Finishing End Mill2_522311-0500.12

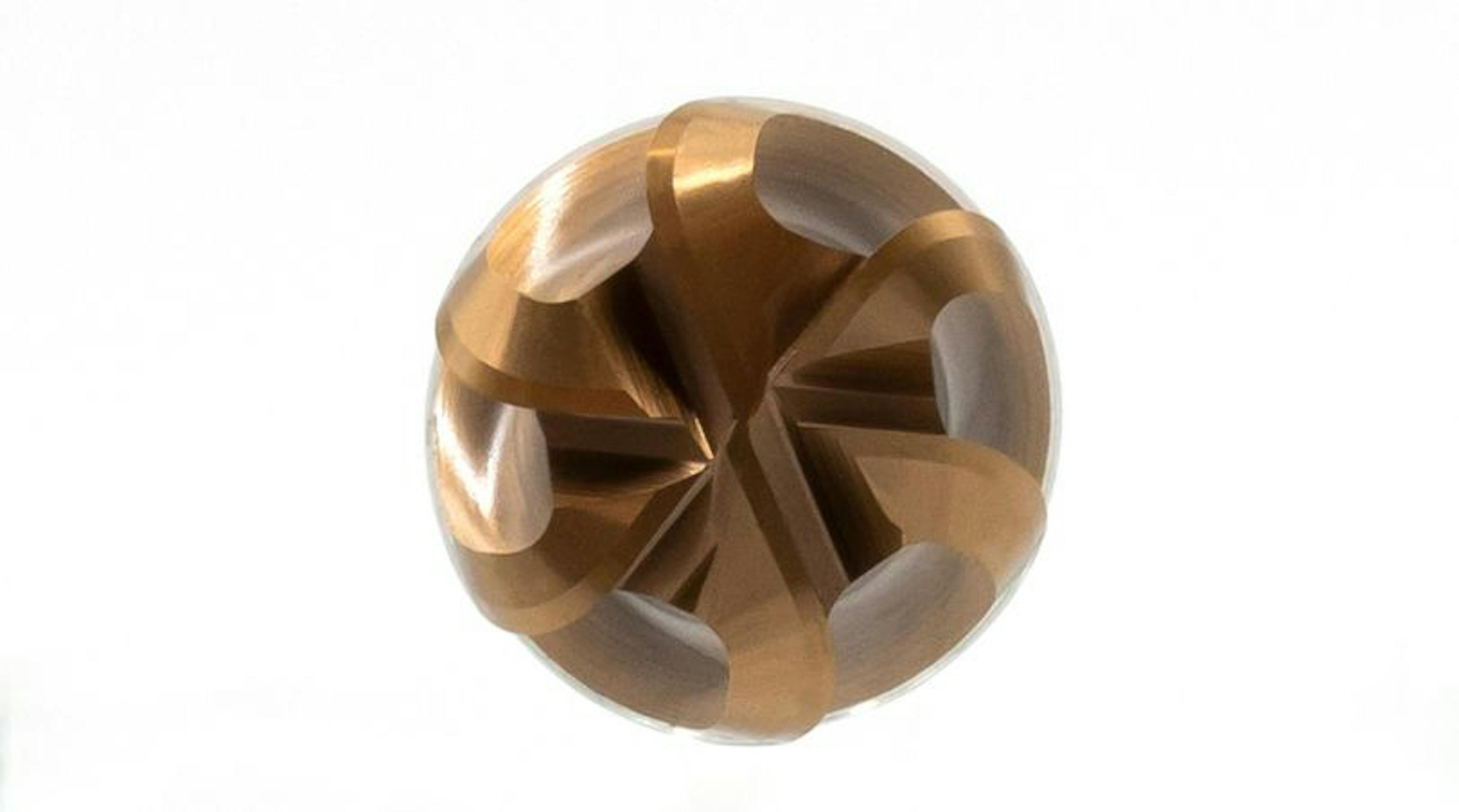

Titanium&Nickel Alloy_Profile2_522311-0500-12

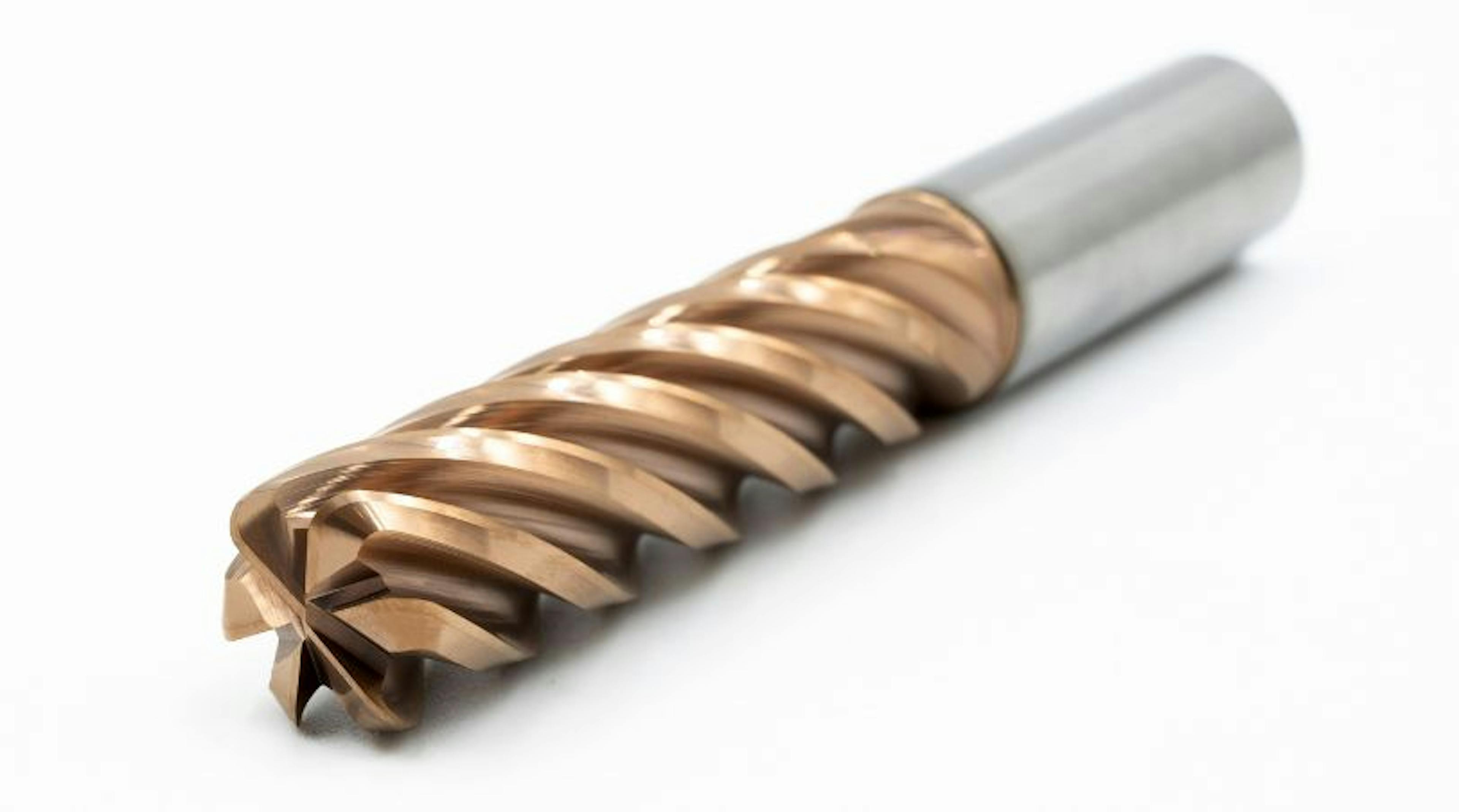

Titanium&Nickel Alloy_Finishing End Mill_Angled full2_522311-0750.12

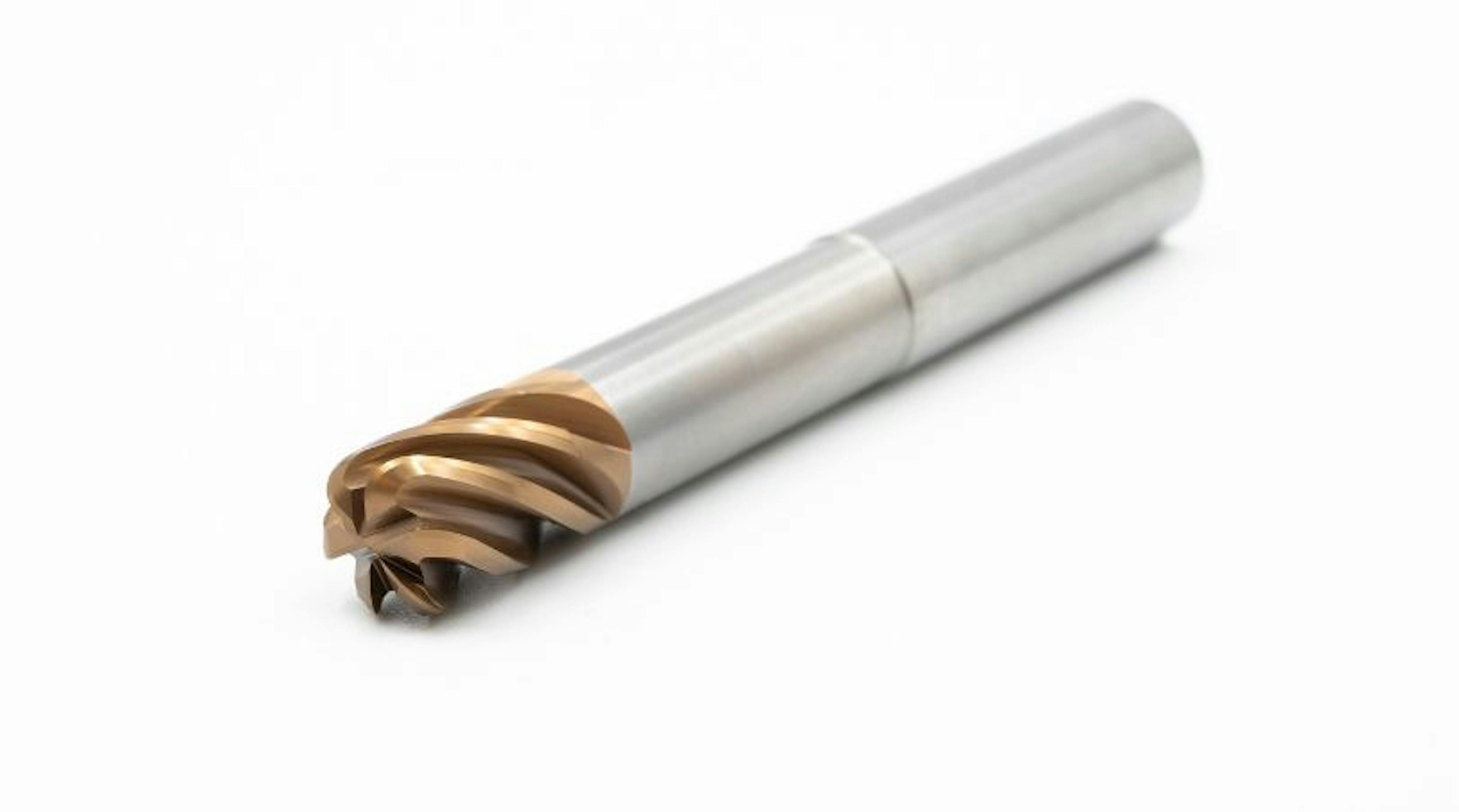

ExactaMill XE22 Series - Finishing End Mills

Engineered for precision, our finishers produce superior surface quality for titanium and nickel applications.

  • Ideal for high dynamic and trochoidal path processes offering high metal removal in high depth of cut applications.
  • Utilisation of the full length of cutter reducing tooling costs
  • Controlled micro radius for consistent tool life.
  • Extended, consistent tool life, reducing tooling costs

Need more information?

Contact us

Specifications

Part Number

Cutter Diameter

Length Below Shank

Cutting Edge Length

Overall Length

Shank Diameter h6

No of Flutes

Corner Radius

523311-0375.03

 3/8



0.500

3.000

0.375

6

0.030

523311-0375.06

 3/8



0.500

3.000

0.375

6

0.060

523311-0375.09

 3/8



0.500

3.000

0.375

6

0.090

522311-0375.03

 3/8



1.250

3.000

0.375

6

0.030

522311-0375.06

 3/8



1.250

3.000

0.375

6

0.060

522311-0375.09

 3/8



1.250

3.000

0.375

6

0.090

523311-0500.03

 1/2



0.625

3.000

0.500

6

0.030

523311-0500.06

 1/2



0.625

3.000

0.500

6

0.060

523311-0500.09

 1/2



0.625

3.000

0.500

6

0.090

523311-0500.12

 1/2



0.625

3.000

0.500

6

0.120

522311-0500.03

 1/2



1.250

3.000

0.500

6

0.030

522311-0500.06

 1/2



1.250

3.000

0.500

6

0.060

522311-0500.09

 1/2



1.250

3.000

0.500

6

0.090

522311-0500.12

 1/2



1.250

3.000

0.500

6

0.120

522811-0500.03

 1/2



2.000

4.000

0.500

6

0.030

522811-0500.06

 1/2



2.000

4.000

0.500

6

0.060

522811-0500.09

 1/2



2.000

4.000

0.500

6

0.090

522811-0500.12

 1/2



2.000

4.000

0.500

6

0.120

523303-0500.03

 1/2

2.250

0.625

4.000

0.500

6

0.030

523303-0500.06

 1/2

2.250

0.625

4.000

0.500

6

0.060

523303-0500.09

 1/2

2.250

0.625

4.000

0.500

6

0.090

523303-0500.12

 1/2

2.250

0.625

4.000

0.500

6

0.120

523311-0625.03

 5/8



0.750

3.000

0.625

6

0.030

523311-0625.06

 5/8



0.750

3.000

0.625

6

0.060

523311-0625.09

 5/8



0.750

3.000

0.625

6

0.090

523311-0625.12

 5/8



0.750

3.000

0.625

6

0.120

522311-0625.03

 5/8



1.625

4.000

0.625

6

0.030

522311-0625.06

 5/8



1.625

4.000

0.625

6

0.060

522311-0625.09

 5/8



1.625

4.000

0.625

6

0.090

522311-0625.12

 5/8



1.625

4.000

0.625

6

0.120

522811-0625.03

 5/8



2.500

5.000

0.625

6

0.030

522811-0625.06

 5/8



2.500

5.000

0.625

6

0.060

522811-0625.09

 5/8



2.500

5.000

0.625

6

0.090

522811-0625.12

 5/8



2.500

5.000

0.625

6

0.120

521811-0750.03

 3/4



1.625

4.000

0.750

6

0.030

521811-0750.06

 3/4



1.625

4.000

0.750

6

0.060

521811-0750.09

 3/4



1.625

4.000

0.750

6

0.090

521811-0750.12

 3/4



1.625

4.000

0.750

6

0.120

522811-0750.03

 3/4



2.750

5.000

0.750

6

0.030

522811-0750.06

 3/4



2.750

5.000

0.750

6

0.060

522811-0750.09

 3/4



2.750

5.000

0.750

6

0.090

522811-0750.12

 3/4



2.750

5.000

0.750

6

0.120

521811-1000.03

1



2.500

5.000

1.000

6

0.030

521811-1000.06

1



2.500

5.000

1.000

6

0.060

521811-1000.09

1



2.500

5.000

1.000

6

0.090

521811-1000.12

1



2.500

5.000

1.000

6

0.120

522311-1000.03

1



3.250

6.000

1.000

6

0.030

522311-1000.06

1



3.250

6.000

1.000

6

0.060

522311-1000.09

1



3.250

6.000

1.000

6

0.090

522311-1000.12

1



3.250

6.000

1.000

6

0.120
