Aluminium End Mill_Roughing_Profile2_411519-0500.03

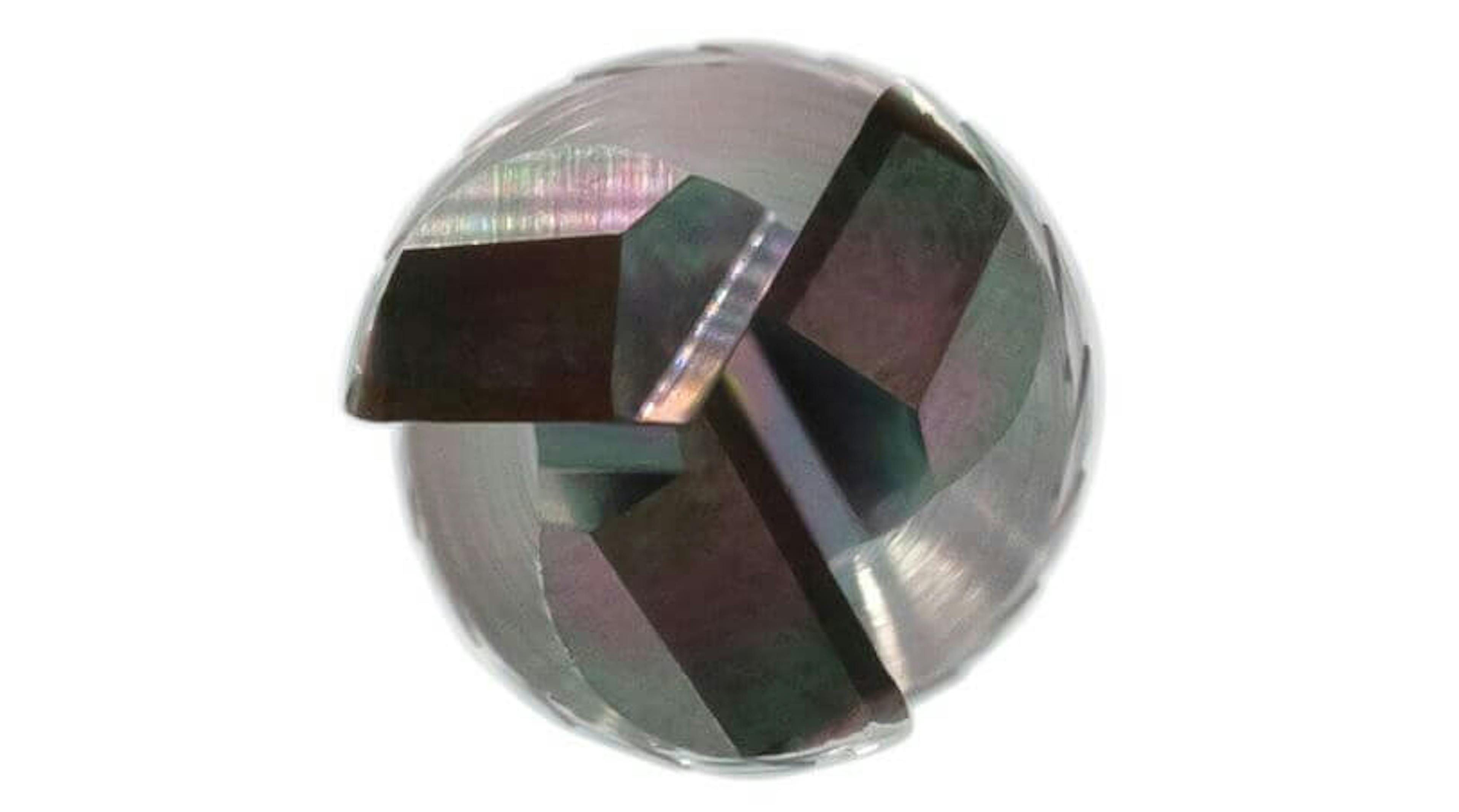

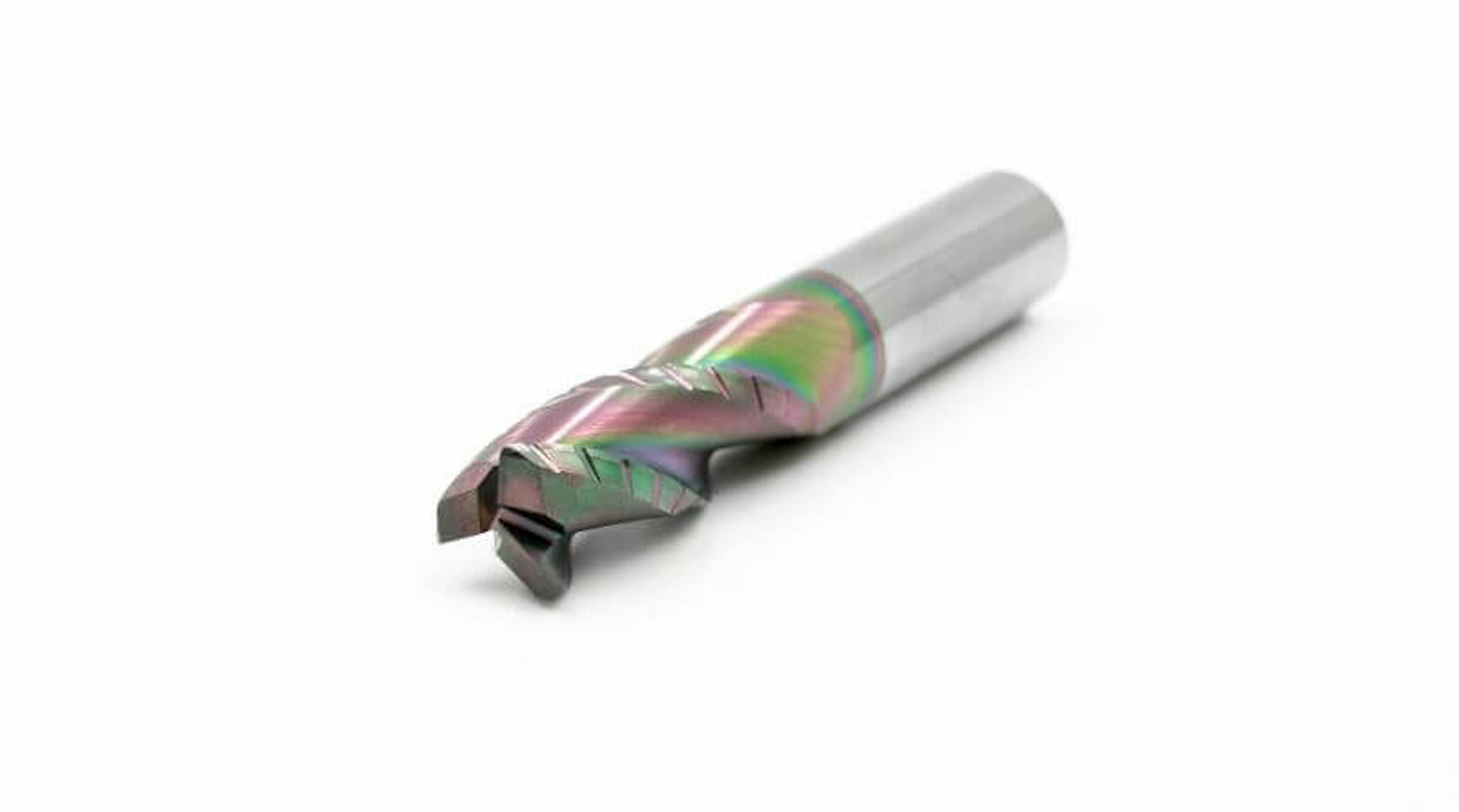

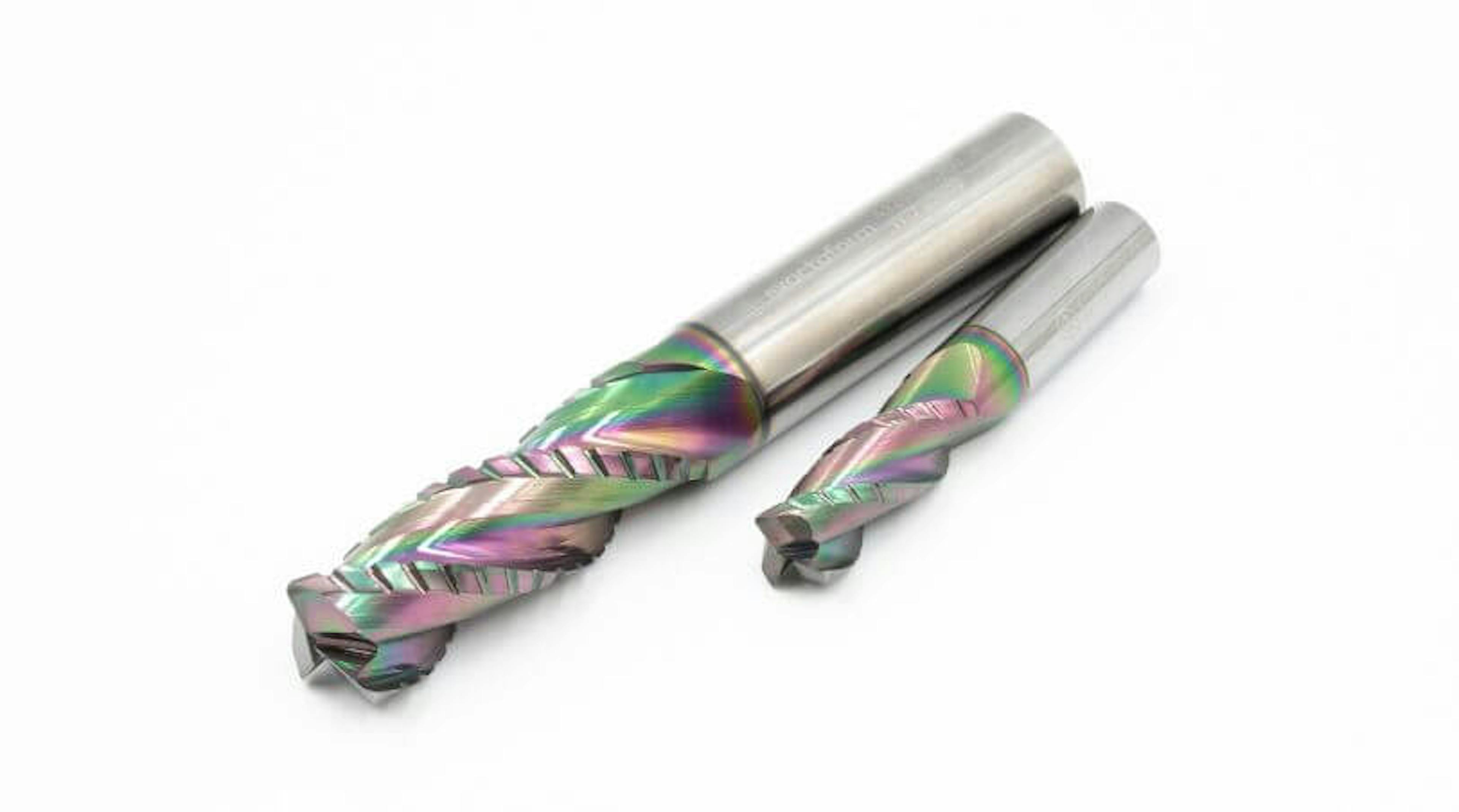

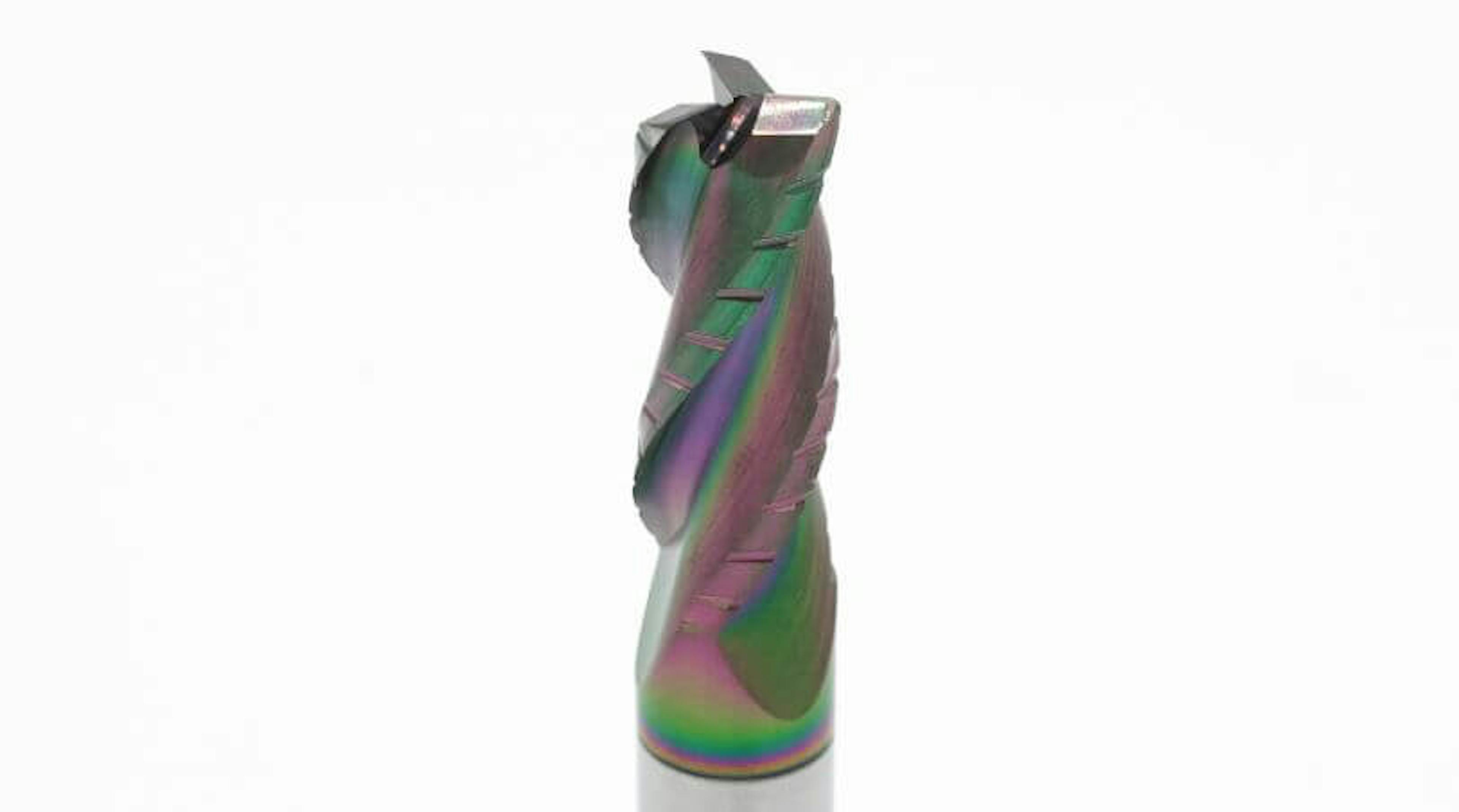

ExactaMill XE13 Series - Roughing End Mills with Chip Breakers

Optimised for challenging cuts, these roughers ensure clean chip evacuation for smoother operations.

  • Chip management and prevention of edge build up.
  • Process security and extended tool life, reducing tooling costs
  • Stability of cut, even in tight corners.
  • Process security, part dimensional accuracy
  • Truncated chip breaker design allows applying a chipbreaker in finishing applications and reduces axial forces.

Need more information?

Contact us

Specifications

Cutter Diameter

Part Number

Length Below Shank

Cutting Edge Length

Overall Length

Shank Length

Shank Diameter h6

No of Flutes

Corner Radius

1/2

411519-0500.03

1.228

1.250

3.000

1.750

0.500

3

0.030

1/2

411519-0500.06

1.228

1.250

3.000

1.750

0.500

3

0.060

3/4

412519-0750.03

3.031

2.125

5.000

2.000

0.750

3

0.030

3/4

412519-0750.06

3.031

2.125

5.000

2.000

0.750

3

0.060
