diamond coated 2 jobber length flute drill

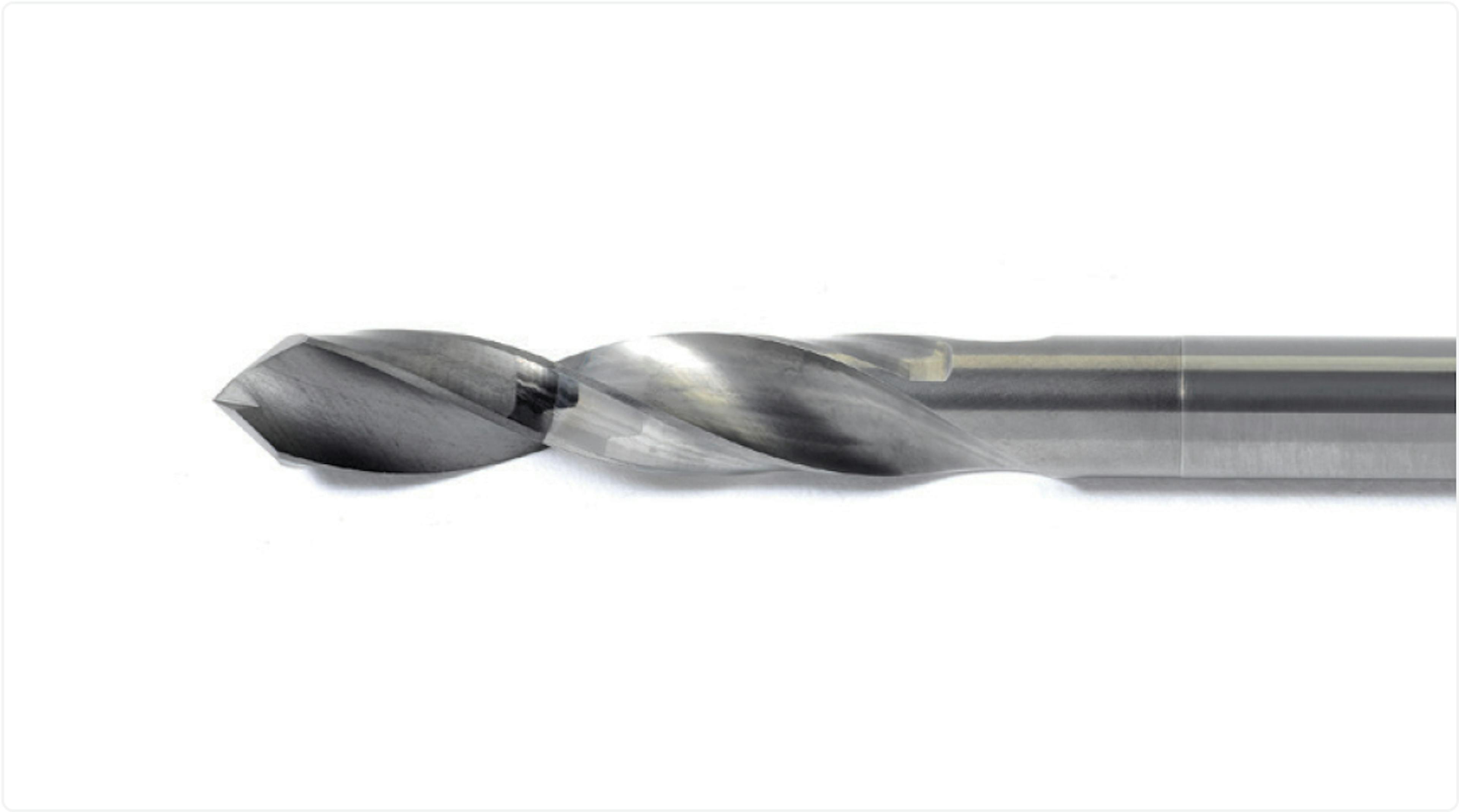

Aero-CARB Metric Range - Diamond Coated 2 Flute Double Margin Drills

Engineered as part of our Aero-CARB Metric Range, these drills are designed to deliver excellent performance and consistency when drilling composite materials such as CFRP and GFRP.

With a double-margin geometry and diamond coating, they combine precision guidance with superior wear resistance - making them ideal for high-accuracy hole-making with minimal delamination.

Key Features:

  • 2 flute double-margin design enhances hole straightness and stability
  • Diamond coating extends tool life in abrasive composite materials
  • Optimized flute geometry minimizes delamination and breakout
  • Available in diameters from Ø3 mm to Ø12 mm, with flute lengths up to 64 mm
  • Tight tolerance control: +0.00 / -0.010 mm for precision-critical applications

Need more information?

Contact us

Flute Ø

Shank Ø

Flute length

Overall length

3

6

24

66

4

6

30

74

5

6

38

82

6

6

38

82

7

8

47

91

8

8

47

91

9

10

54

103

10

10

54

103

11

12

64

118

12

12

64

118

View the Aero-Carb Range
