Diamond coated end mills are among the most advanced cutting tools available for precision machining, offering exceptional wear resistance, extended tool life, and high performance when machining abrasive and non-ferrous materials. By combining a carbide substrate with a specialised Diamond Coating, these tools deliver superior cutting efficiency, improved surface finish, and significantly longer service life compared to conventional coated milling cutters.

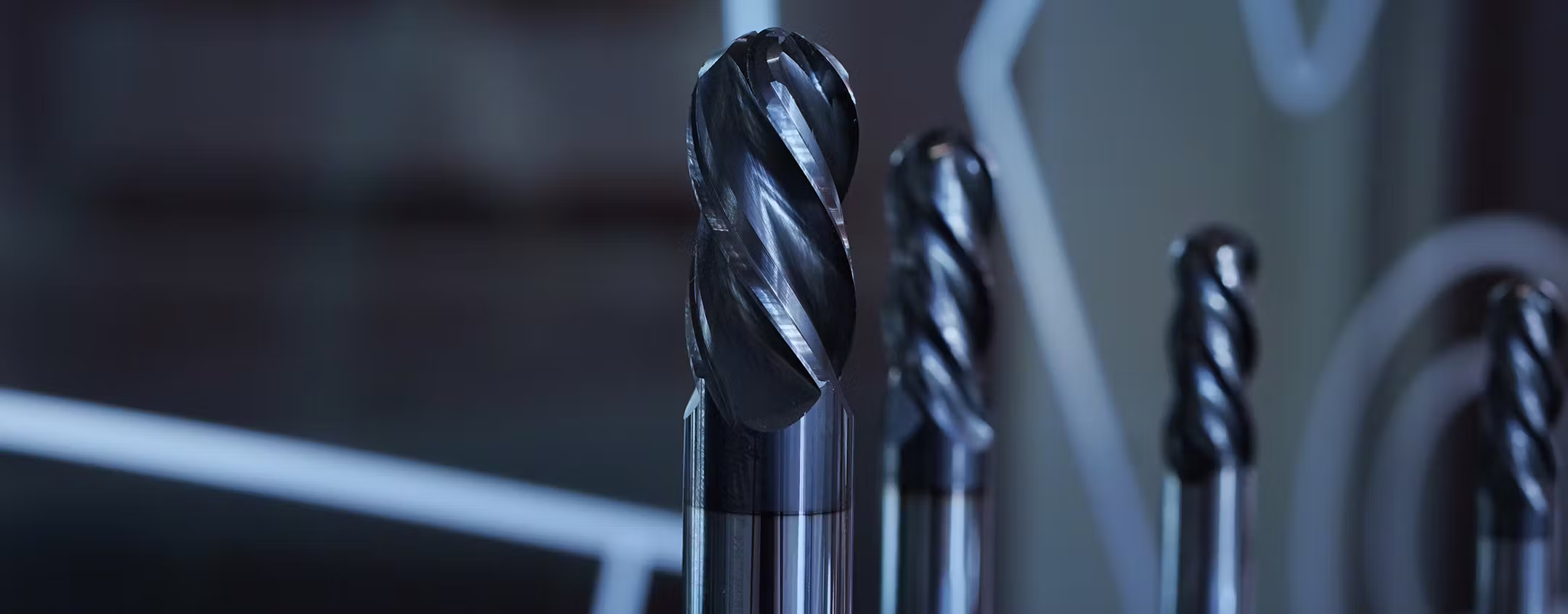

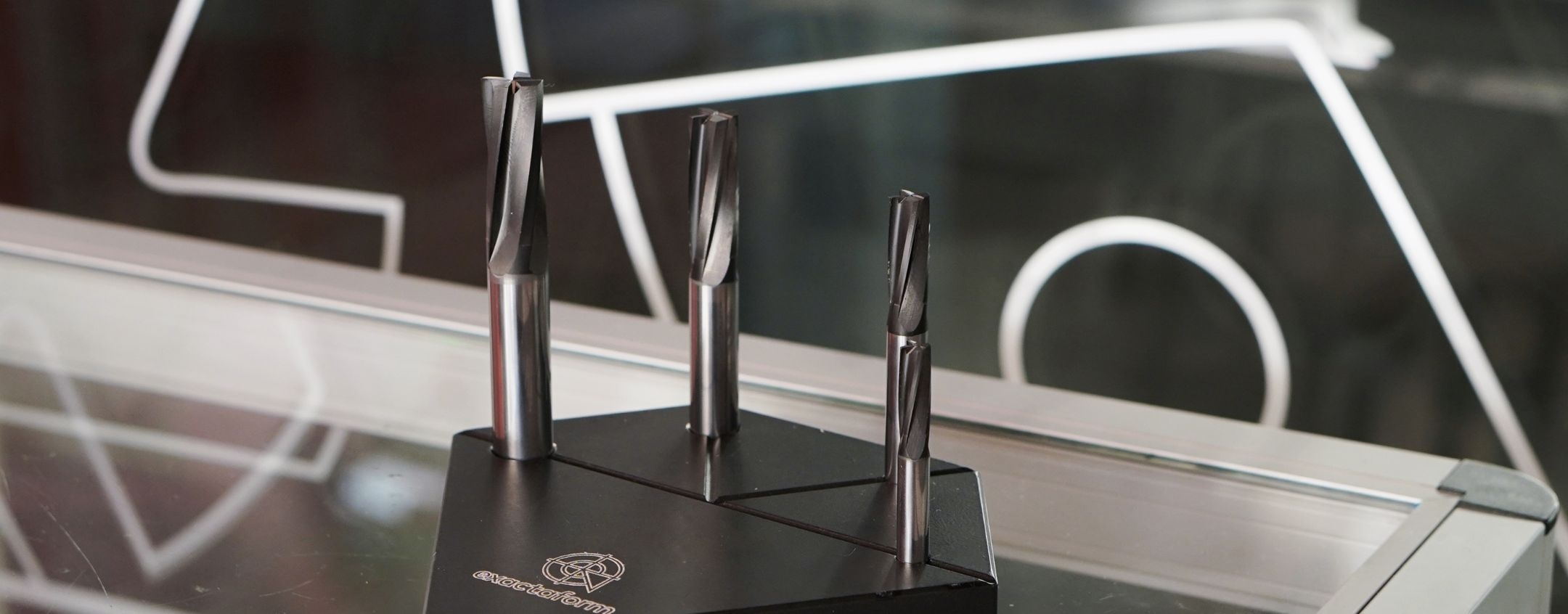

Diamond coated end mills are solid carbide cutting tools enhanced with a thin layer of synthetic diamond applied using advanced coating processes such as CVD Diamond (Chemical Vapour Deposition). This diamond coating creates an extremely hard and wear-resistant cutting surface that dramatically improves durability and performance when machining abrasive materials.
As part of modern diamond coated tools technology, these end mills deliver superior tool life, higher cutting speeds, and improved surface finishes when working with challenging materials.
Unlike polycrystalline Diamond (PCD Diamond End Mills), which use brazed diamond cutting edges, diamond coated end mills feature a uniform coating applied directly to the tool surface. This allows for greater design flexibility, making them ideal for complex geometries, smaller cutting diameters, and intricate machining applications.
The coating itself may consist of:
• CVD Diamond coating for maximum hardness and abrasion resistance
• Amorphous Diamond coatings for smoother surface finish and lower friction
• Polycrystalline Diamond coating structures for extreme wear resistance
This advanced diamond tooling technology enables manufacturers to machine difficult materials efficiently while maintaining precision and tool reliability.
Diamond coated milling cutters are best suited for machining abrasive, non-ferrous, and composite materials where conventional carbide tools experience rapid wear. Ideal applications include:
Composite materials are highly abrasive due to embedded fibres, which can quickly wear down standard carbide tools. Diamond coated end mills significantly extend tool life while reducing fibre pull-out, delamination, and edge damage.
Diamond coated milling cutters provide excellent performance when machining aluminium, especially high-silicon aluminium alloys, where abrasive silicon particles accelerate tool wear.
Graphite is extremely abrasive, and diamond coating provides the necessary wear resistance to maintain tool geometry and cutting performance over extended production runs.
These tools are ideal for machining copper alloys, ceramics, reinforced plastics, and abrasive polymers. In these applications, diamond coated milling cutters provide significantly superior durability and wear resistance compared to uncoated carbide tools, resulting in longer tool life and more consistent machining performance.
Selecting the correct diamond coated end mill requires consideration of several important dimensional and performance factors.
Cutting Diameter
The cutting diameter determines the width of the cut and affects material removal rates, cutting forces, and precision.
Flute Length
Flute length influences chip evacuation and cutting depth capability. Longer flute lengths allow deeper cuts but require proper machining conditions to maintain stability.
Overall Length
The overall length of the tool affects reach and accessibility when machining deep cavities or complex geometries.
Shank Diameter
The shank diameter determines tool compatibility with the tool holder and affects tool rigidity and stability.
Coating Thickness
Coating thickness plays a critical role in tool performance. Thicker coatings provide increased wear resistance and longer tool life, while thinner coatings allow sharper cutting edges for precision machining.
Optimising coating thickness ensures the best balance between durability and cutting performance.
While both diamond coated end mills and PCD Diamond End Mills use diamond technology, they serve different purposes.
Diamond coated end mills offer:
PCD Diamond End Mills provide:
Diamond coated tools are often preferred for complex milling operations, prototyping, and applications requiring high precision.
One of the most important advantages of diamond coated end mills is their dramatically extended tool life. The extreme hardness of the Diamond Coating significantly reduces abrasive wear, allowing these cutting tools to last up to ten times longer than conventional carbide tools in demanding machining applications. This extended tool life helps reduce tool replacement frequency, minimise machine downtime, and lower overall tooling costs, resulting in improved productivity and cost efficiency.
CVD Diamond coatings offer hardness levels approaching that of natural diamond, providing unmatched resistance to abrasion and wear. This superior wear resistance allows the tool to maintain its original cutting diameter, flute length, and geometry for extended periods of use. Maintaining consistent tool geometry improves machining accuracy, enhances component quality, and ensures reliable long-term machining performance in high-precision applications.
Diamond coated end mills are specifically designed for high performance machining environments, enabling higher cutting speeds and feed rates while maintaining stability and precision. This improved cutting efficiency allows manufacturers to achieve faster production cycles, increase overall productivity, and enhance machining efficiency, particularly when machining abrasive and non-ferrous materials.
Diamond tooling provides extremely sharp cutting edges with low friction characteristics, resulting in smoother surface finishes and reduced material deformation. This is especially critical in aerospace and composite applications where precision and surface integrity are essential.
Diamond Coating reduces friction between the tool and workpiece, minimising heat generation during machining. Lower cutting temperatures help preserve tool integrity and prevent premature wear.
The combination of advanced diamond coating, high-quality carbide substrates, and optimised tool geometries allows diamond coated milling cutters to achieve superior performance in demanding machining environments. These cutting tools provide exceptional wear resistance, enabling them to maintain their cutting edge and dimensional accuracy even when machining highly abrasive materials. Their advanced coating and precision design also allow for increased machining speeds, improving overall productivity and reducing cycle times. In addition, diamond coated end mills produce an improved surface finish due to their low friction coefficient and sharp cutting edges, which enhance machining precision and component quality.
By significantly extending tool life and reducing tool replacement frequency, these tools also help lower operating costs while delivering consistent high performance over extended production runs. For manufacturers machining abrasive materials, diamond coated end mills provide a reliable and cost-effective solution for achieving optimal productivity, improved machining efficiency, and consistent machining quality.
Selecting the appropriate diamond coated end mill depends on several critical factors related to the machining application and production requirements. The workpiece material plays a key role in determining the most suitable tool, as abrasive materials such as composites, graphite, and high-silicon aluminium require diamond coatings to ensure maximum wear resistance and tool life. The required cutting diameter must also be considered, as it affects machining precision, stability, and material removal rates. Flute length and tool geometry influence chip evacuation, cutting performance, and the tool’s ability to machine complex features efficiently. Machine capabilities, including spindle speed, rigidity, and overall machining conditions, must be compatible with the selected tool to ensure optimal performance and reliability.
The required surface finish is another important consideration, as diamond coated tools can significantly improve surface quality when properly matched to the application. Production volume also influences tool selection, as higher production environments require tools capable of delivering consistent performance and extended durability. Working with an experienced Diamond tooling manufacturer such as Exactaform ensures optimal tool selection, reliable performance, and maximum efficiency across a wide range of precision machining applications.
Diamond coated end mills represent one of the most advanced solutions available for machining abrasive and non-ferrous materials. By combining CVD Diamond coating technology, precision carbide substrates, and optimised cutting geometries, these tools deliver exceptional tool life, high performance, and superior machining quality.
For manufacturers seeking reliable and efficient Diamond tooling solutions, diamond coated milling cutters provide a powerful combination of durability, performance, and cost-effectiveness.
Exactaform’s expertise in advanced Diamond Coating and precision tool manufacturing ensures optimal performance across a wide range of machining applications.
