By Maria Simeonova
As materials, assembly processes, and quality standards evolve across aerospace and automotive sectors, the expectations placed on countersink drilling have changed dramatically. Countersinking has become a high-precision, high-impact operation that plays a critical role in structural integrity, performance, and manufacturing efficiency.
At Exactaform, we work closely with OEMs and Tier 1 manufacturers to provide tooling that meets these evolving demands combining durability, consistency, and application-specific precision across both automated and manual operations.
Countersink drilling involves creating a conical recess that allows flat-head fasteners to sit flush with the material surface. This is an essential requirement in components where aerodynamic efficiency, mechanical load distribution, and tight assembly tolerances must be maintained.
Achieving a high level of precision becomes increasingly complex when working with materials such as CFRP, MMC, aluminium, and titanium alloys. Each presents its own machining challenges, thermal sensitivity and fibre pull-out, built-up edge formation and work hardening. Such demanding environments require tooling that can deliver consistent, clean results without compromising structural integrity.

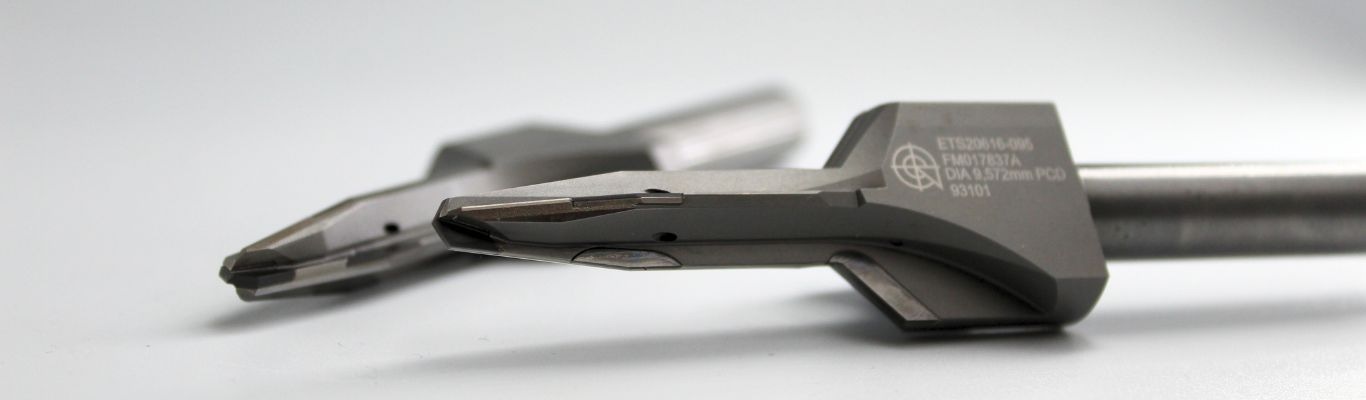

Our work with major aerospace manufacturers has shown that traditional carbide or coated tools often fall short when machining advanced materials. That’s why we’ve invested heavily in the development of PCD (Polycrystalline Diamond) countersinks, engineered to perform under extreme conditions.
PCD countersinks offer:
PCD countersinks can extend tool life by up to 400% compared to traditional alternatives, particularly when used in automated drilling systems where variables like pressure and feed rate are tightly controlled.
In aerospace manufacturing, manual countersinking is commonly used during maintenance, repair, and overhaul (MRO) operations or in areas of the airframe where geometry restricts access for automated equipment. However, manual processes introduce differences in pressure, angle, and feed rate from one operator to the next.
In contrast, automated countersinking is widely applied in high-throughput production environments such as fuselage assembly lines, wing structures, and skin panel drilling. As an example, when used in these manual systems, a typical countersink can achieve around 100 holes manually in CFRP before edge wear sets in. A PCD countersink tool in the same setup can exceed 400 holes, thanks to process control and optimised parameters.
Automation doesn’t just reduce variability. It:
As aerospace and EV manufacturers push toward higher volumes and tighter tolerances, the shift to automated and CNC-driven countersinking is accelerating.
In automotive production, countersinking supports a different but equally demanding set of goals: fast cycle times, high repeatability, and tight tolerances. Widely used for brake systems, chassis components, or electric motor housing.
Our tooling solutions are designed to scale with production, offering the durability, speed, and cost-efficiency needed in high-output environments. In many cases, a single countersink tool must perform across aluminium or composite substrates with minimal wear and no compromise in finish.
Through our "Refurb or Recycle" program, we help customers maximise tool performance and tool life at every stage. Services include:
Whether you're machining CFRP, MMC, aluminium and titanium alloys, our ranges of premium PCD countersinks and eco-cut PCD countersinks are built for the real demands of aerospace and automotive production.
Let’s find the right solution for your process.
Get in touch today to speak with our engineering team.
