Diamond coated 2 flute drill
Diamond coated 2 flute drill

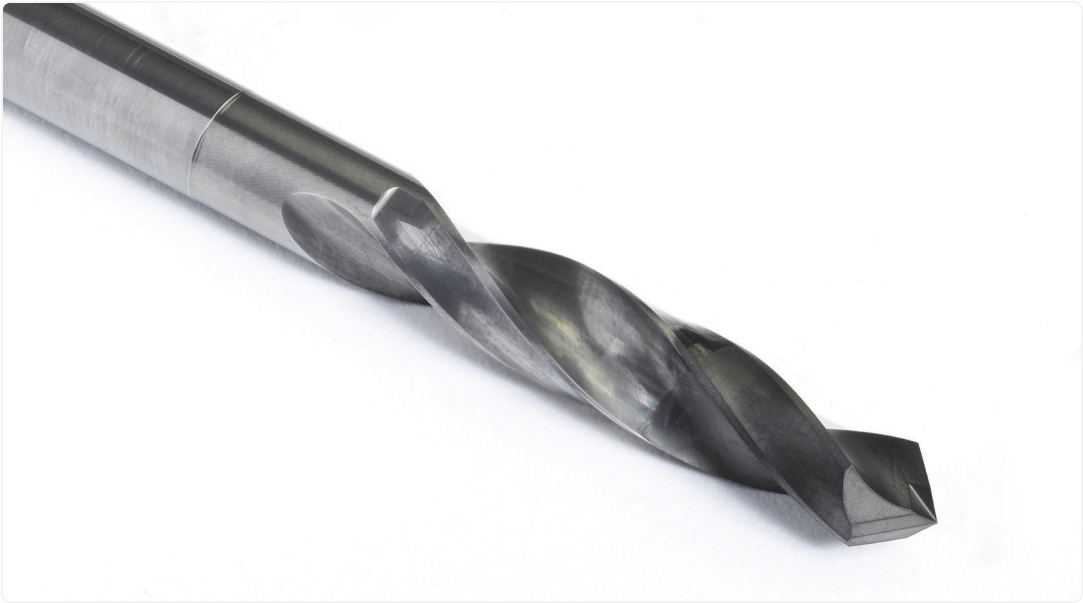

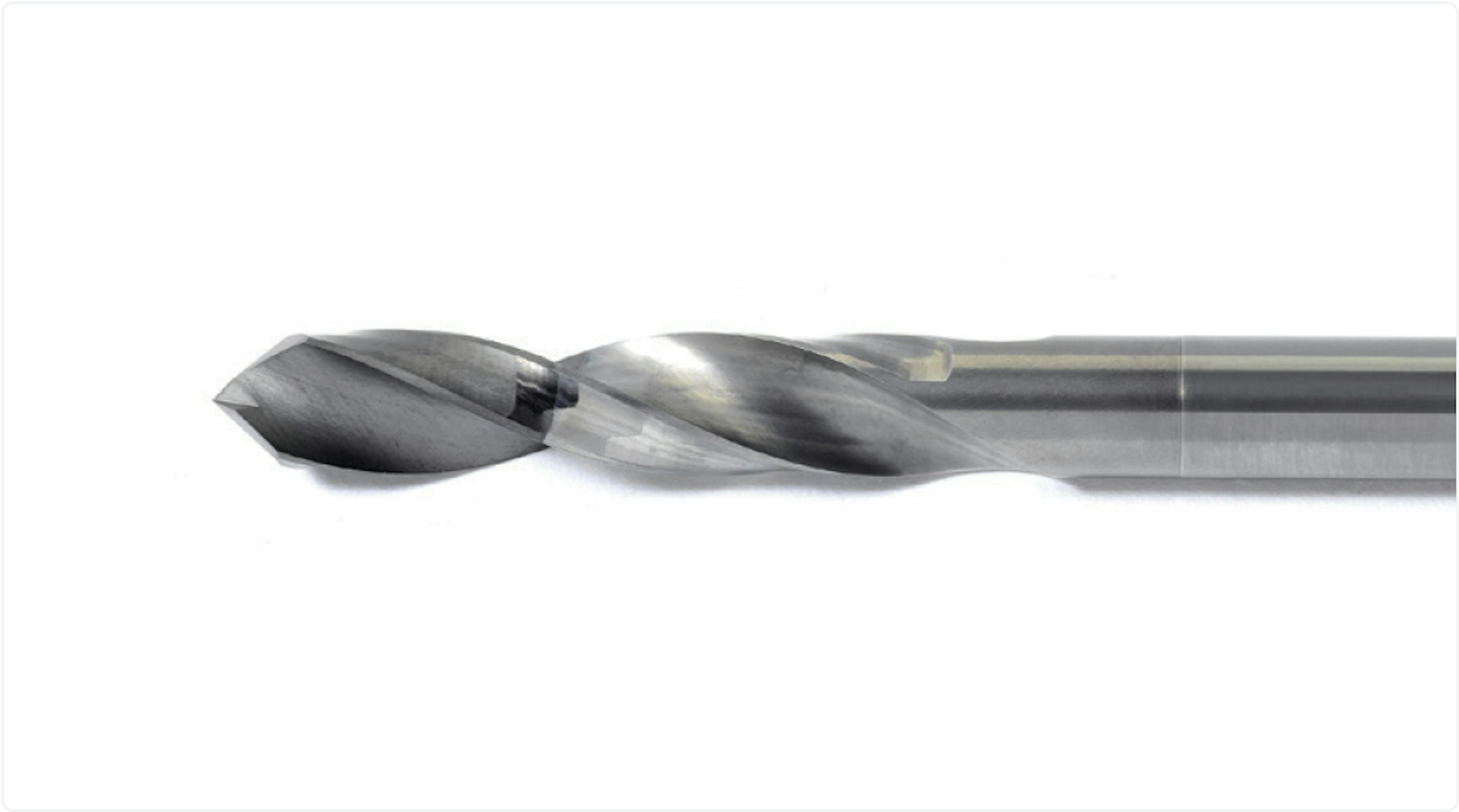

Aero-CARB Imperial Range - Diamond Coated 2 Flute Drill

As part of our Aero-CARB Imperial Range, these drills are designed for precision and extended performance in composite drilling.

If you’re looking to improve your drilling results in CFRP or other composites, but need a more cost-effective solution - this diamond-coated series is your ideal upgrade.

Key Benefits:

  • Optimised point geometry minimizes delamination and exit burrs
  • Diamond coating extends tool life significantly compared to uncoated tools
  • Double margin design improves hole roundness and guidance
  • Consistent 1.50" flute length and 3.00" overall length for standardization
  • Available in flute diameters from 0.125" to 0.500", with corresponding h6 shank tolerances

Need more information?

Contact us

Flute Ø

Shank Ø

Flute length

Overall length

0.125"

4mm h6

1.50"

3.00"

0.187"

6mm h6

1.50"

3.00"

0.1935"

6mm h6

1.50"

3.00"

0.2520"

8mm h6

1.50"

3.00"

0.312"

8mm h6

1.50"

3.00"

0.375"

10mm h6

1.50"

3.00"

0.500"

14mm h6

1.50"

3.00"
